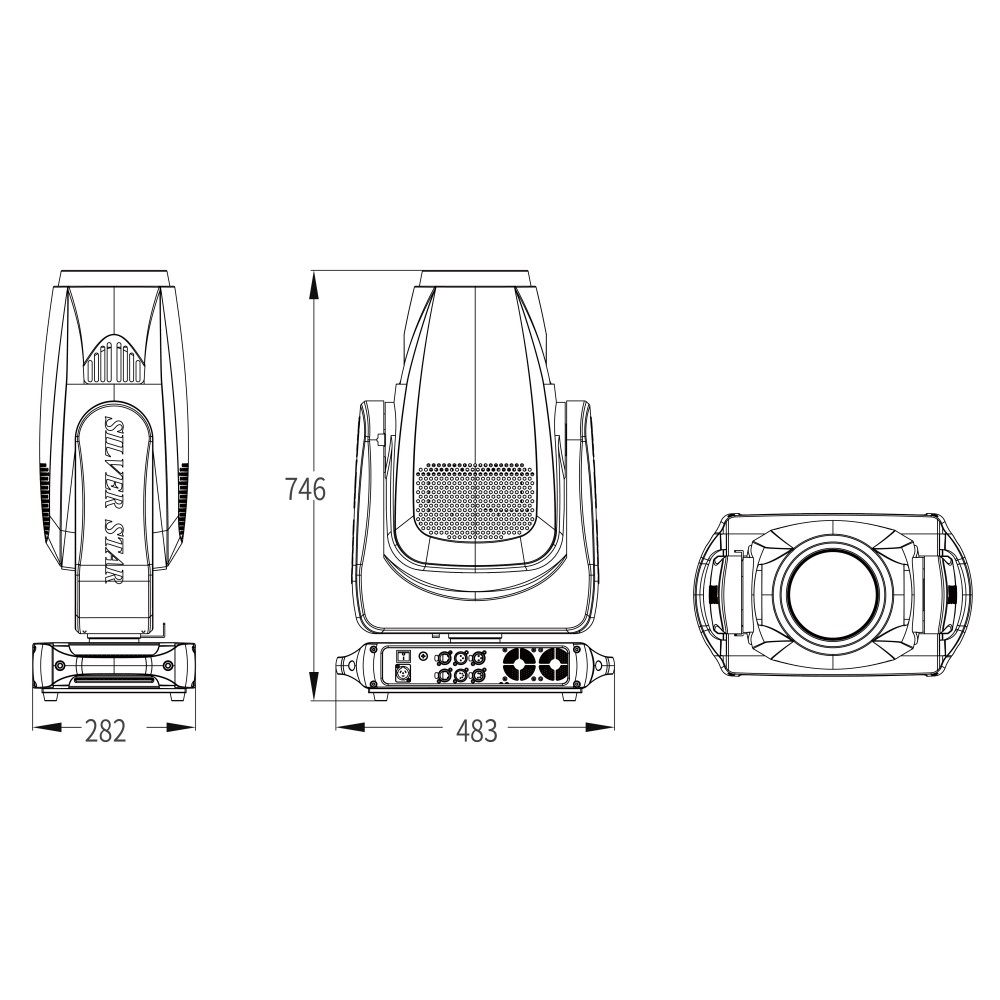

Dimension Drawing
Illuminance Diagram
Profile
PLUTO T16 P is with 1400W LED light source, CMY and linear CTO, contains a professional framing system, can cut out many polygon; it is designed for events, concerts, fashion shows as well as rental market.
/upload/images/product/20250918/17581802235622624.png
Light source
1400W
/upload/images/product/20250918/17581802275609760.png
Luminous flux
34000lm
/upload/images/product/20250918/17581802322425746.png
Angle
5-55°
/upload/images/product/20250918/17581802371170841.png
CRI
Ra≥95 R9≥95
/upload/images/product/20250918/17581802456121845.png
Weight
45.5KG
/upload/images/product/20250918/17581802491020952.png
Max. Power
1600W
Optical system
Light source

1400W

Angle

 5-55°

Luminous flux34000lm
CRI

Ra≥95

R9≥95

Appearance
Size

483x284x796mm

Casing

Flame -retardant plastic

Weight45.5KG
Color

黑色

Electrical Specs
Voltage

100-240VAC,50/60HZ

Max. Power

1600W

Power Connectionpower in
Signal socket

3pin + 5pin in / out，RJ45 in / out

Control System
Pan/Tilt rotation

540°/270°(8-16bit)

CoolingForced Convection
Dimmer

0-100%16Bit

DisplayOn board Control, Custom Mode,0-25Hz Strobe
ControlDMX512，RDM，ARTNET、W-DMX（optional）、SACN、Web Server
Con PersonalityBASIC(36CHS)、STANDARD(42CHS)、EXTEND(45CHS)
Special

Pan/Tilt movement blackout, User-selectable pan/tilt ranges

Effect synthetic system
Rotating Gobo

7 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotation

Static Gobo8 Gobos+White，Gobo-flow effect，Gobo shake
ColorsOne color wheel (6 dichroic-filters+White,Rainbow-flow effect)
CMYKCMY wheel, Linear CTO function
Framing system

4 shutter blade; Each blade's angel and direction can be individual

controlled, fully blackout; The whole Framing module is ±90°.

Prism

One piece of 4 F prism and one piece of 5 linear prism

Iris

5-100% linearly adjustable,with macro

Animation WheelBi-directional rotation
ZoomMotorized linear Zoom
FocusMotorized linear focus
Frost

2 new material frost filters(light & medium), can be

used independent and overlay.


Work Environment
Ambient Temp

0℃-45℃

IP Rated

IP20

Certification

CE、MET
