The Pluto 4-in1 Moving head, T18, possessing 1600W LED light source, has a CMY color mixing system and
an independent linear CTO which provide colorful effects. The X/Y positioning is smooth and accurate, the
gobo wheel is quick and sensitive, and the professional color wheel presents some magical color effects.
Professional framing system can cut out any polygon, independent effect wheel rendering water and fire
effects. Professional frost filter can meet the needs of stage washing. Professional iris will show the flexibility
of light spot incisive, this product is specially developed for theater, cultural hall, multi-function hall, banquet
hall and rental performance venues.
Light source
1600W
Luminous flux
23000lm
Angle
5-55°
CRI
Ra:95
R9:90
Weight
45.5KG
Max Power
1800W
Optical system
Light source
1600W
Angle
5-55°
CRI
Ra:95,R9:90
Luminous flux
23000lm
Illuminance
5M@84500Lx(5°)
Appearance

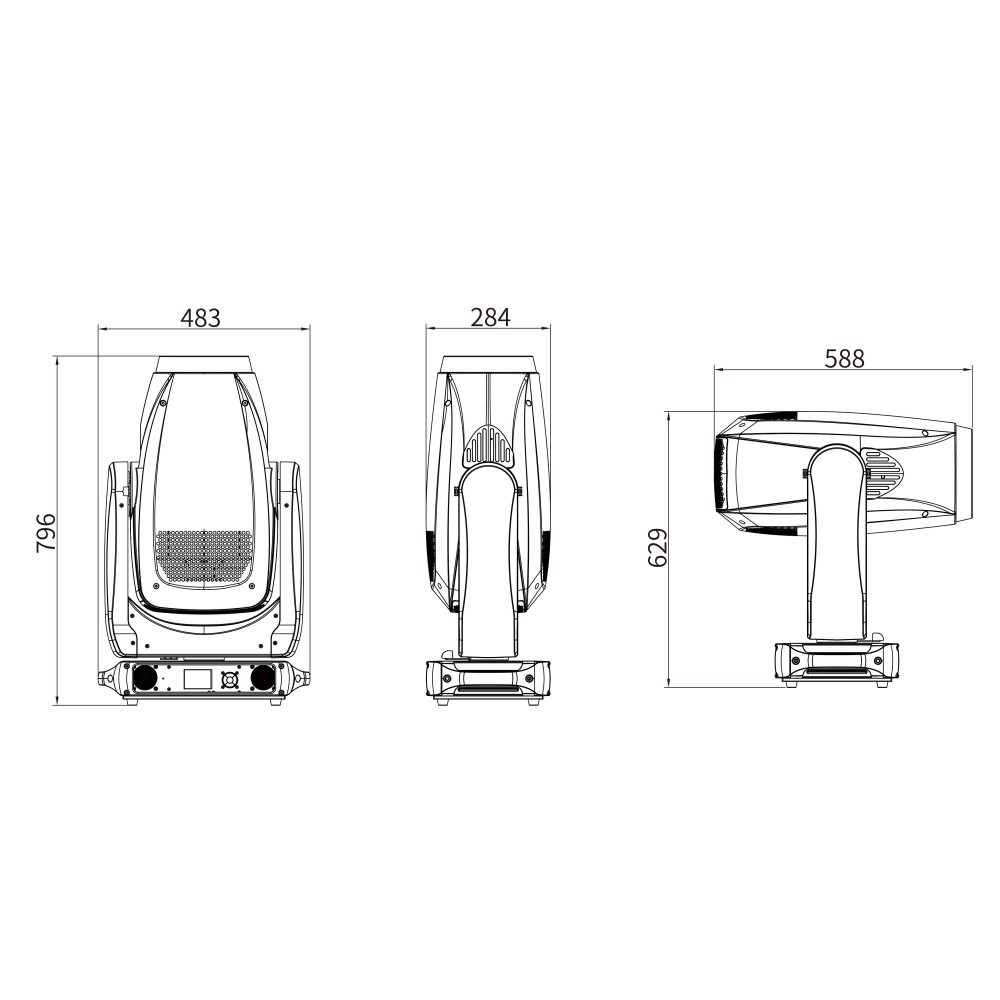

Size
483x284x796mm
Weight
45.5kg
Casing
Flame-retardant engineerin plastic housing
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max Power
1800W
Signal socket
power in
Power Connection
3pin or 5pin in and out
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Cooling
forced air cooling
Dimmer
Opera dimming effect (0-100% 16Bit dimming)
Display
Display board control static, custom mode, 0-25Hz stroboscopic
Control
DMX512,RDM, W-DMX(optional)
tunnel mode
BASIC(36CHS)、STANDARD(42CHS)、EXTEND(45CHS)
specific function
Pan/Tilt movement blackout, User-selectable pan/tile range
4 shutter blade, smooth cutting, cutting direction and Angle of each blade's can be independently controlled: The single blade can be completely closed, and the entire cutting module can be rotated +90°
