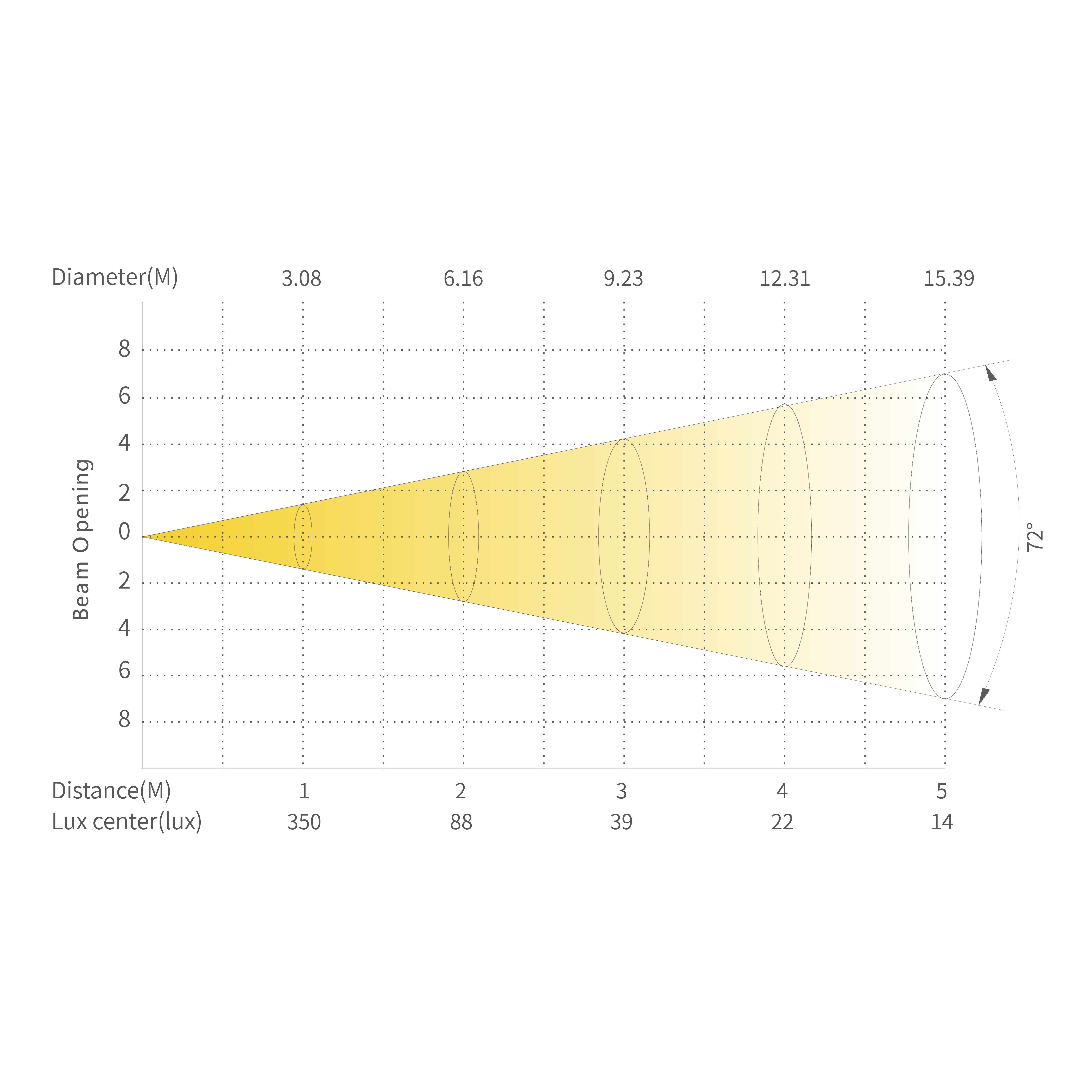

Illuminance Diagram
Foot light
TF3
TF3 is a typical parcan which has single-facet-light efect. It is adopting the trailblazing creative RGBL source, possessing the stunning washing effect and the abundant color mixing effect. Besides，TF3 is implanted with CCS technology, and the CRI is greater than 85Ra.
/upload/images/product/20250917/17580976789149537.png
Light source
R*36PCS,G*36PCS B*36PCS,W*36PCS
/upload/images/product/20250917/17580976781570720.png
Luminous flux
2671lm
/upload/images/product/20250917/17580976782544187.png
Angle
72°
/upload/images/product/20250917/17580976786697446.png
Weight
7.5kg
/upload/images/product/20250917/17580976786336946.png
Max. Power
70W
Optical system
Light source

R*36PCS,G*36PCS,B*36PCS,W*36PCS

Angle

72°

Luminous flux2671lm
Lux center350lux


Appearance
Size

551x163x133mm

Casing

Die-cast Aluminum

Weight7.5kg
Color
Black


Electrical Specs
Voltage

100-240VAC

Max. Power

70W

Power ConnectionPower in/out
DMX XLRDMX in/out


Control System
DIMMER

0-100% 16Bit

Cooling

Direct convection

DisplayOn board Control, Custom Mode,0-25Hz Strobe
ProtocolRDM,DMX
PersonalityHSIC(7CH),SSP(7CH),TOUR(12CH),TR16(17CH),BLOCK(9CH),BLOCK2(15CH),CMY(10CH)


Work Environment
Ambient Temp

-20°-45°

IP RatedIP66
