Real Photo

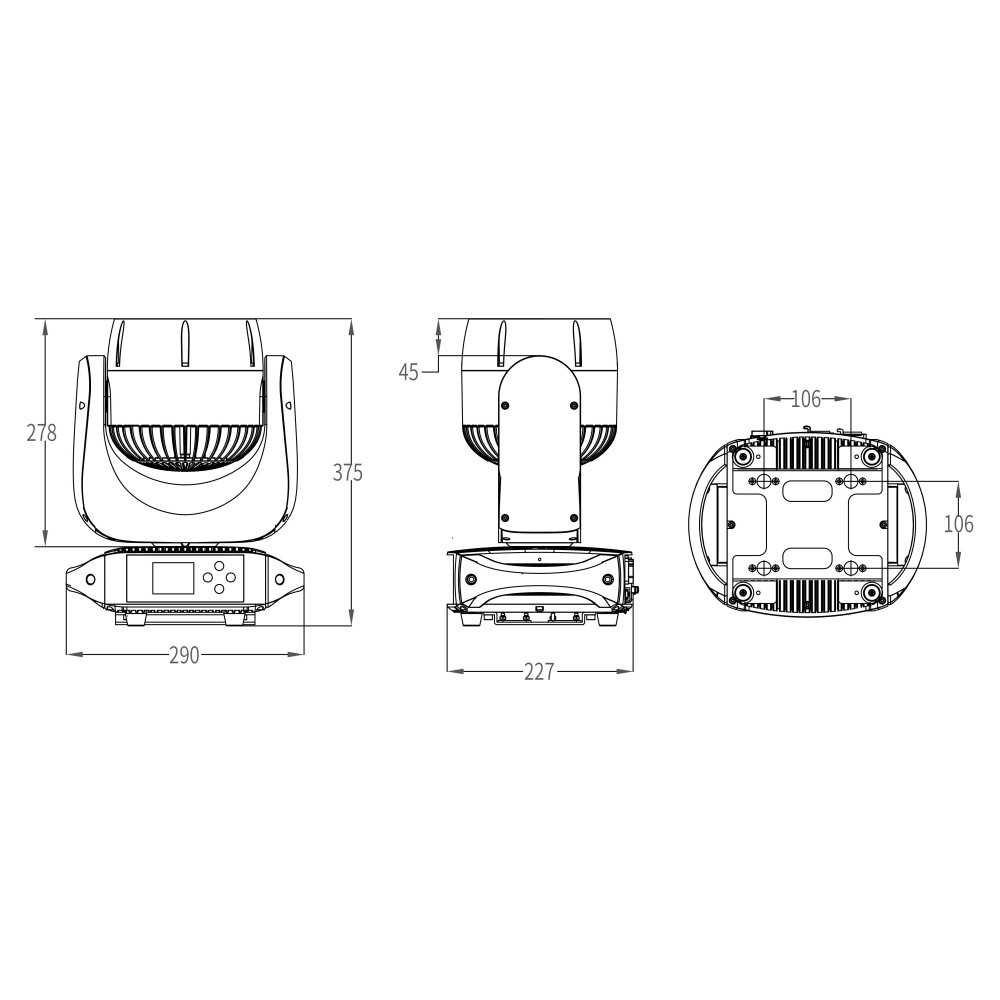

Dimension Drawing

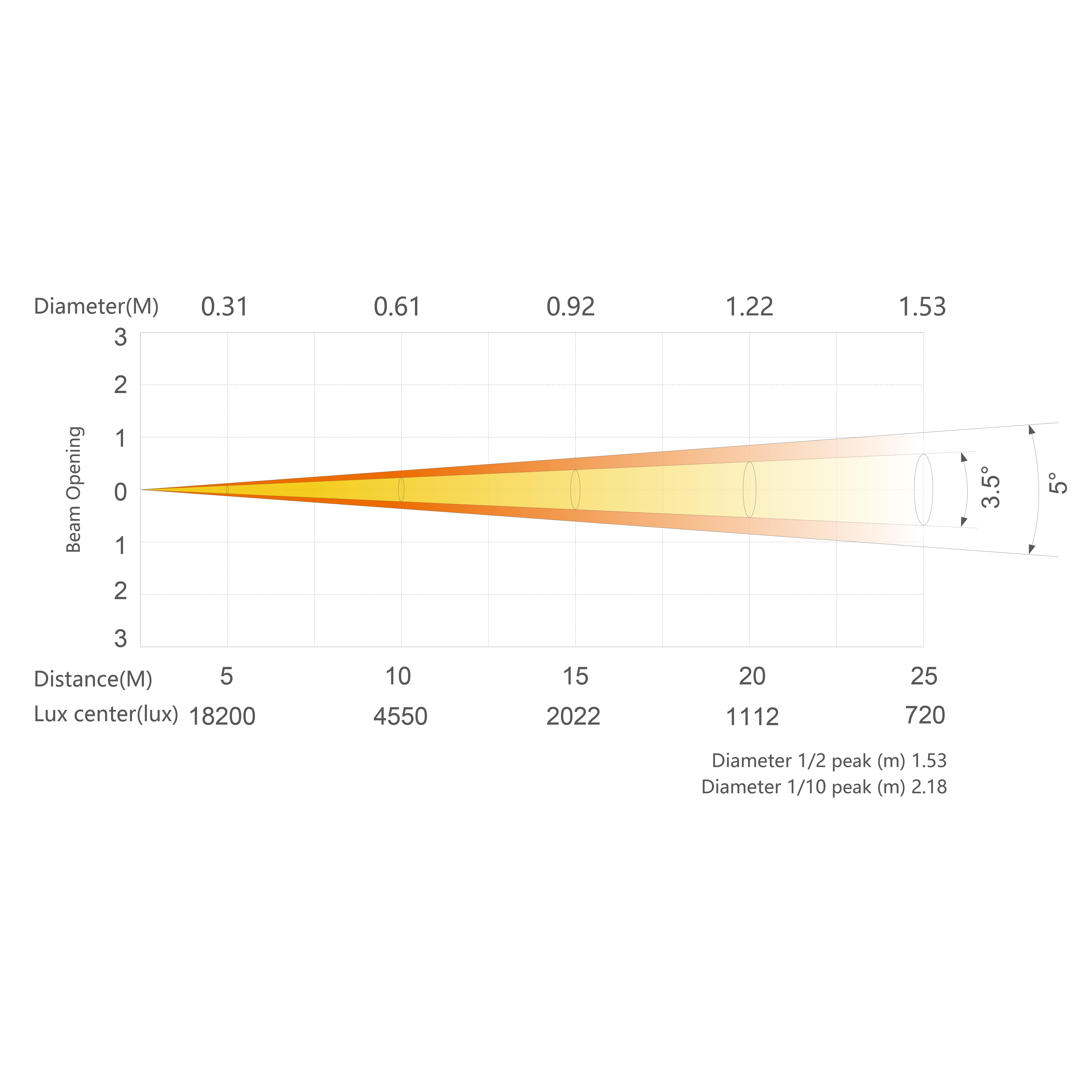

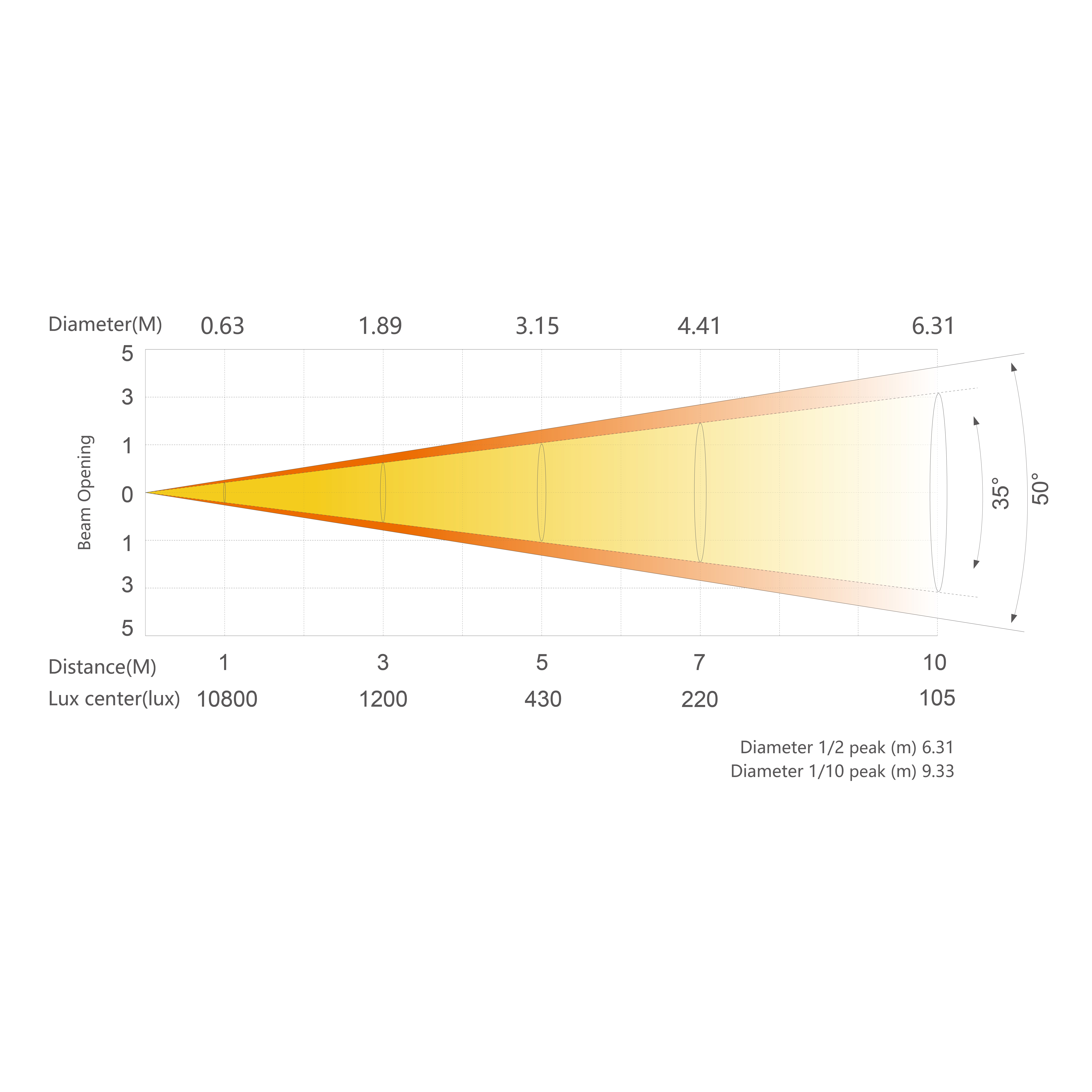

Illuminance Diagram
Moving wash
NW3
New era of IP66 moving beam wash with high efficient RGBL LED source,ultra-wide zoom range, excellent beam and wash effects. Light weight and compact design, super fast and accurate XY perfommance. lt is suitable for both outdoor or indoor events, road shows, concerts, operas, banguets and various performance.
/upload/images/product/20250918/17581604272528118.png
Light source
RGBL
/upload/images/product/20250918/17581604271178442.png
Luminous flux
2941lm
/upload/images/product/20250918/17581604278996000.png
Beam angle
Beam angle:3.5-35°
/upload/images/product/20250918/17581604273053180.png
Wveight
10kg
/upload/images/product/20250918/17581604271676051.png
Max. Power
320W
Optical system
Light source

7×40W RGBL+RGB Ring

Beam angle3.5-35°
Fleld angle

5-50°

CRIRA :85(3200K、4000K、5600K、6500K)
Luminous flux

2941lm


Appearance
Size

290×227×375mm

Casing  Magnalium and Die-cast
Weight10kg
Color

Black

Electrical Specs
Voltage

100-240VAC,5060Hz

Power Connectionpower in and out
Max. Power320W
Signal socket

3pin or 5pin in and out


Control System
Pan/Tilt rotation

540°/220°(8-16bit)

Dimmer0-100% 16Bit
CoolingForced Convection
DisplayOn board Control, Custom Mode, 0-25Hz Strobe
ControlDMX512、RDM,W-DMX (optional)
Con PersonalityHSIC/SSP/TOUR/TR16/CMY/ZONE
Speclal

Pan/Tilt movement blackout.User-selectable

pan/tilt ranges


Work Environment
Ambient Temp

-20℃-45℃

IP Rated

IP66

Certification

CE
