PLUTO 1300 PROFILE Wash is a high-power professional LED profile wash, with 5.5°-50° Electronic
zoom system. Precise X/Y positioning, with professional framing system can cut out any polygon,
and with frost and iris. It is designed for the theatres, cultural center, function hall, banquet hall, as
well as rental performance market.
Light source
1000W
luminous flux
139121lm
Beam Angle
Beam Angle：5.5-36°
Field Angle：11.5-50°
CRI
93Ra，95R9
Weight
35.5KG
Max. Power
1300W
Optical system
Light source
1000W
Beam Angle
5.5-36°
Field Angle
11.5-50°
CRI
93Ra，95R9
luminous flux
139121lm
Illuminance
5M@13341lux(5.5°)
Appearance

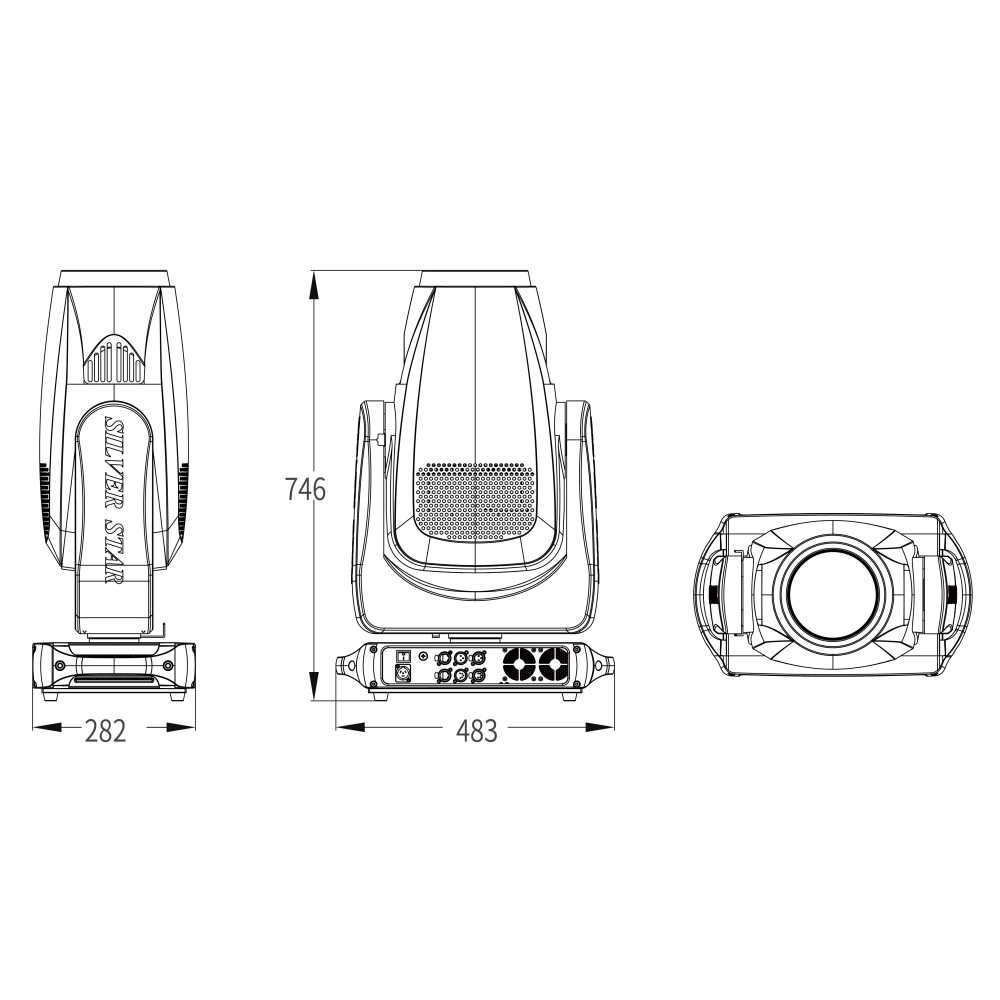

Size
483X283X746mm
Casing
Flame -retardant plastic（V0）
Weight
35.5KG
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60HZ
Max. Power
1300W
Power Connection
power in
Signal socket
3pin or 5pin in and out，
RJ45 in and out
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Dimmer
0-100%16Bit
Cooling
Forced Convection
Display
On board Control, Custom Mode,0-25Hz Strobe
Control
DMX512，RDM，W-DMX（optional)
Con Personality
BASIC(28CHS)、STANDARD(33CHS)、EXTEND(37CHS)
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges
Effect synthetic system
Colors
Two color wheel (7dichroic-filters+White,Rainbow-flow effect)
CMYK
CMYwheel, Linear CTO function
Framing system
4 shutter blade; Each blade's angel and direction can be individual
controlled, fully blackout; The whole Framing module is ±90°
Iris
5-100% linearly adjustable with macro
Focus
Motorized linear focus
Zoom
Motorized linear Zoom
Frost
2 new material frost filters(light & medium), can be used
