Real Photo

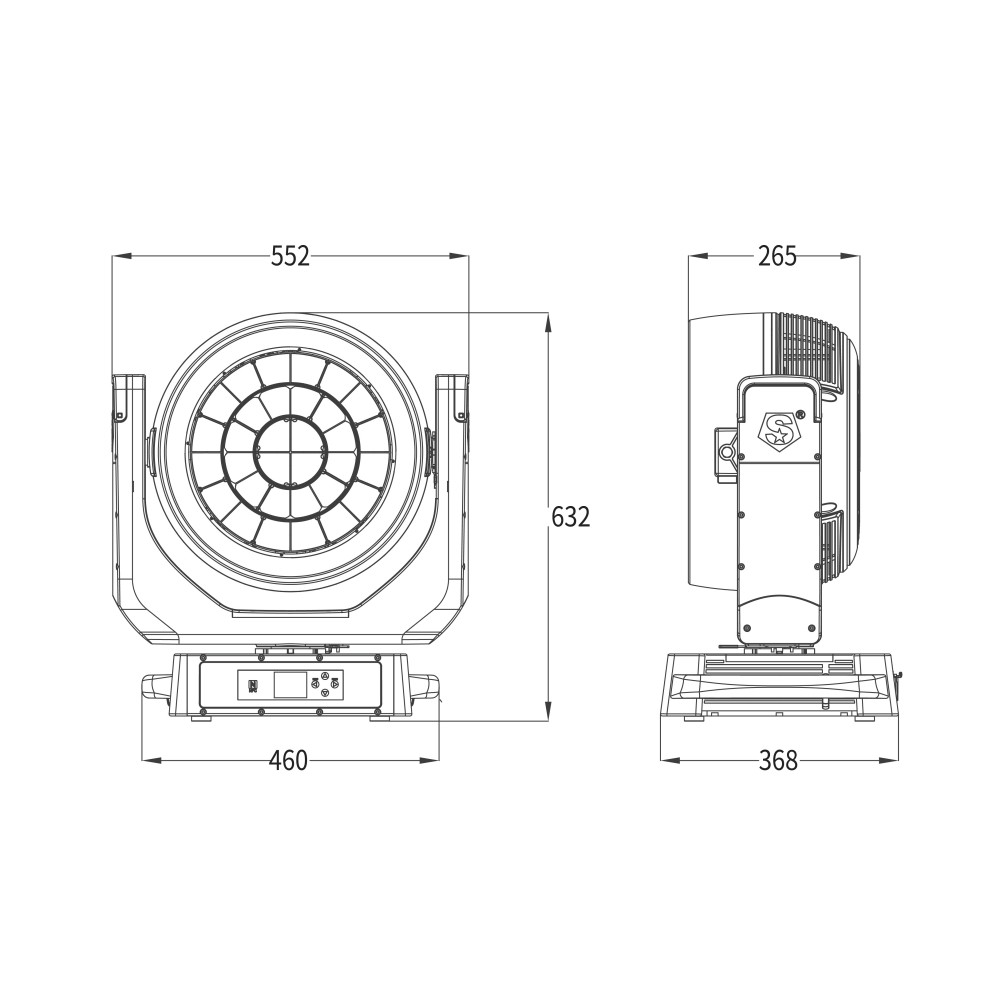

Dimension Drawing

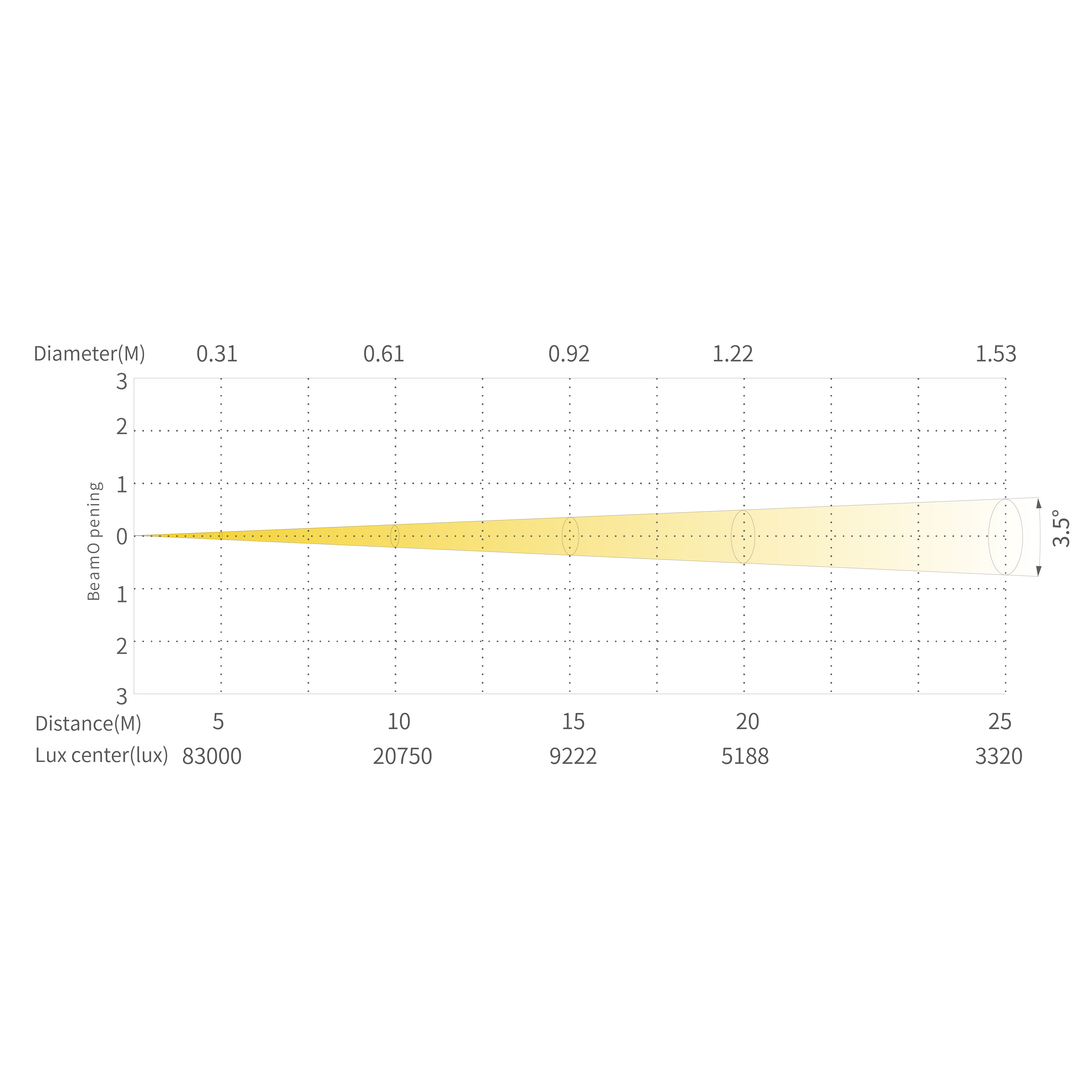

Illuminance Diagram
Moving wash
Neptune lMoving Wash NF9-X is a new generation of excellent color mixing RGBL 4*n-1 moving wash, equipped with 32pcs'60W RGBL and M-face, Max power 1800w. 3.5-60 degree zoom range, the first triple zoom to create a rich washing effect individual pixel control, can create a rich variety of dynamic effects. Onginal M-face optical glass halo. bright and dazzling Ininite X rotating system. 24Bit dimming system,the ulimate dimming effect. with digital color processing system with 24 presel colors and full range color temperature. 1P66 protection, waterproof and dustproof maintenance-ree, and lightweight only 38KG, suitable for theater, variety show, TV station, concert, cultural travel project and city level ighting interpretation.
/upload/images/product/20250918/17581614871695999.png
Light source
RGBL
/upload/images/product/20250918/17581614878709412.png
Fixture lumen
18000lm
/upload/images/product/20250918/17581614879439499.png
Angle
Beam angle:3.5°-35°
/upload/images/product/20250918/17581614875999375.png
Weight
38kg
/upload/images/product/20250918/17581614871721379.png
Max. Power
1800W
Optical system
Light source

32*60W  RGBL

Fixture lumen18000lm
CRIRA :85(3200K、4000K、5600K、6500K)
Beam angle3.5°-35°
Field angle6°-60°


Appearance
Size

552×368×632mm

CasingDie-cast aluminumplastic
Weight 38kg
ColorBlack


Electrical Specs
Voltage

100-240VAC,50/60Hz

Power ConnectionPOWER in
Signal Socket3pin or 5pin in and out, RJ45 in and out
Max. Power1800W


Control System
Pan/Tilt rotation

Infinite Pan/Tilt 270°(8-16bit)

Dimmer0-100% 24Bit
CoolingForced Convection
ControlDMX512、RDM、ARTNET、SACN、W-DMX (optional)、NFC
PersonaliyHSIC(28CH)、SSP(21CH)、TOUR(33CH)、TR16(44CH)、CMY(32CH)、PIXEL RGBL(154CH)、PIXEL Full(391CH)


Effect synthetic system
Led ring

Can present the rainbow effect

EffectIndividual Pixel
ZOOM
Triple Zoom


Work Environment
Ambient Temp

-20℃-45℃

IP RatedIP66
CertificationCE
