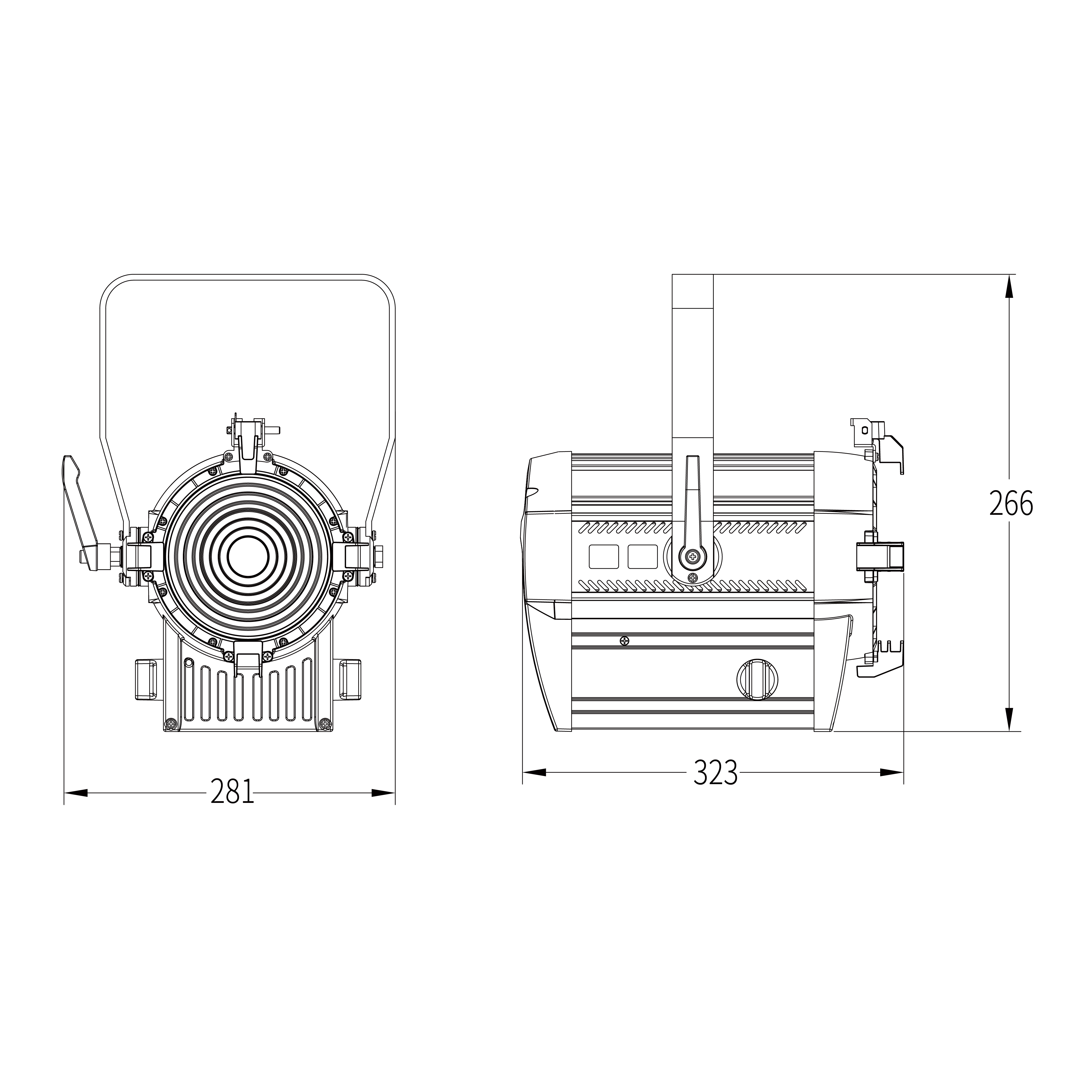

Dimension Drawing

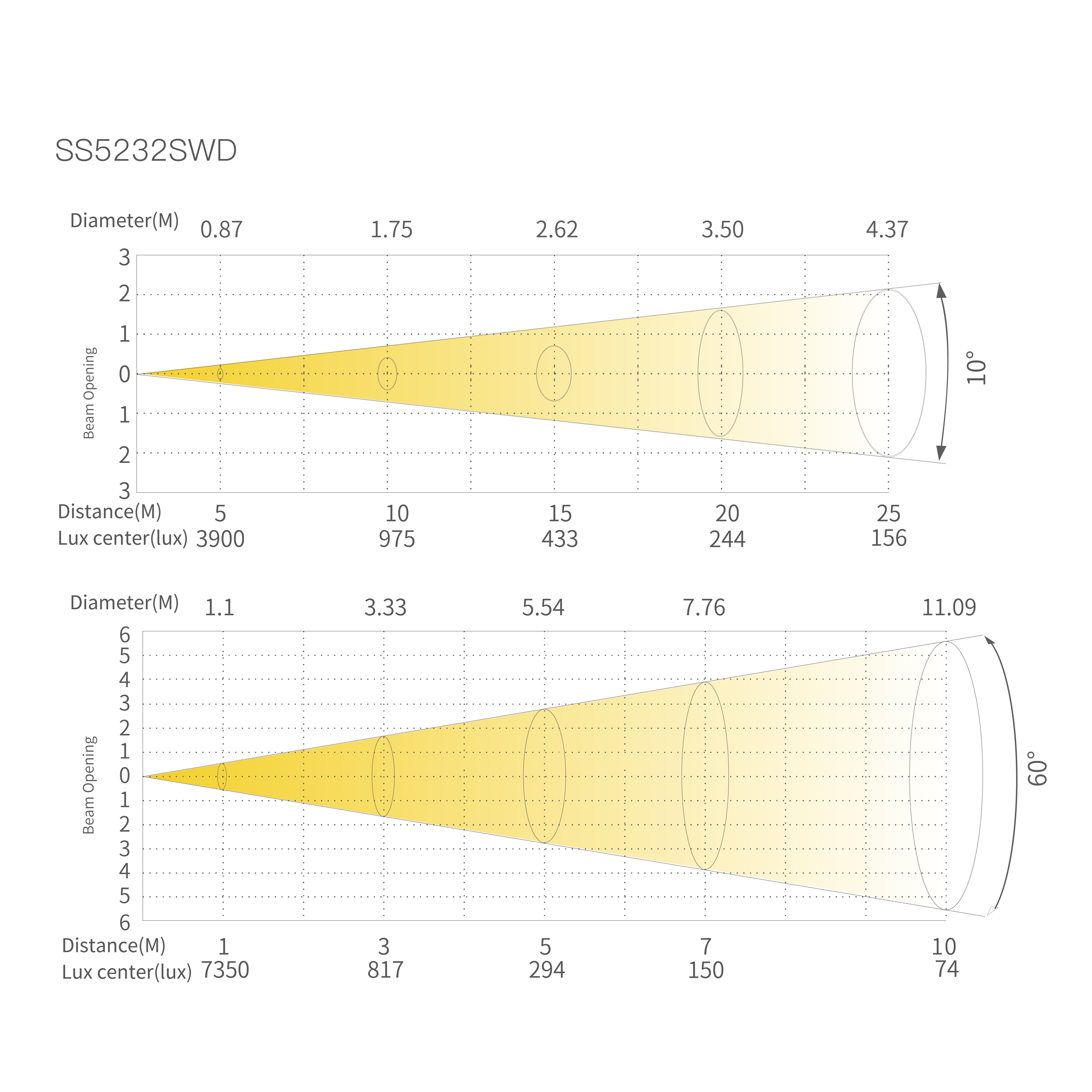

Illuminance Diagram
Intelligent dimmer
FD3
FREZNO 100 SD is a professional theatrical fresnel with high CRI >95, manual zoom 10-60° , and uniform light output. The control protocol integrates DMX, RDM, and Triac, and the application is more extensive and flexible. It is the best choice for theaters, TV, Studio...etc.
/upload/images/product/20250918/17581655061946076.png
Light source
100W
/upload/images/product/20250918/17581655065229154.png
Angle
10°-60°
/upload/images/product/20250918/17581655069356224.png
CRI/CRI R9/TLCI/CQS
R9:95、CRI:96.1、TLCI:96、CQS:96
/upload/images/product/20250918/17581655061511821.png
Weight
6.1kg
/upload/images/product/20250918/17581655066786928.png
Max. Power
100W
Optical system
Light source

100W

CCT

3200K


Angle

10°-60°

Luminous flux

5219lm


CRI/CRI R9/TLCI/CQS

R9:95、CRI:96.1、TLCI:96、CQS:96


Light source

100W

CCT

5600K


Angle

10°-60°
Luminous flux

6350lm


CRI/CRI R9/TLCI/CQS

R9:95、CRI:96.1、TLCI:96、CQS:96



Appearance
Size

323x281x266mm

Casing

Die-cast aluminum

Weight

6.1KG

Color

Black


Electrical Specs
Voltage

100-240VAC,50/60HZ

Max. Power

100W

Power Connection

Power in and out

DMX XLR

DMX in and out


Control System
Dimmer

0-100%16Bit

Cooling

Forced Convection

Control

DMX512、RDM、Dimming Pack

Con Personality

UNO(1CH)、DOS(2CHS)、STD.P(3CHS)

Display

On board Control, 0-25Hz Strobe

Zoom

Manual


Work Environment
Ambient Temp

0°C-45°C

Certification

CE、MET

IP Rated

IP20
