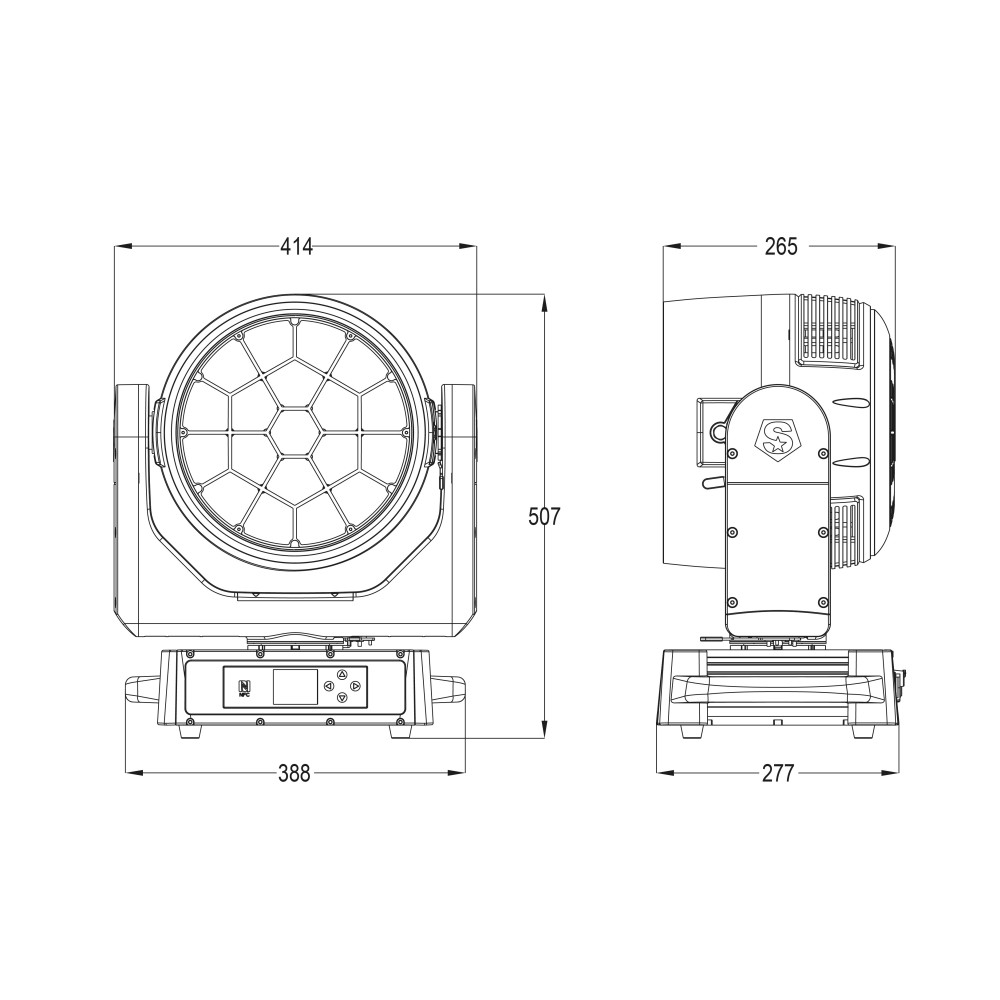

Dimension Drawing

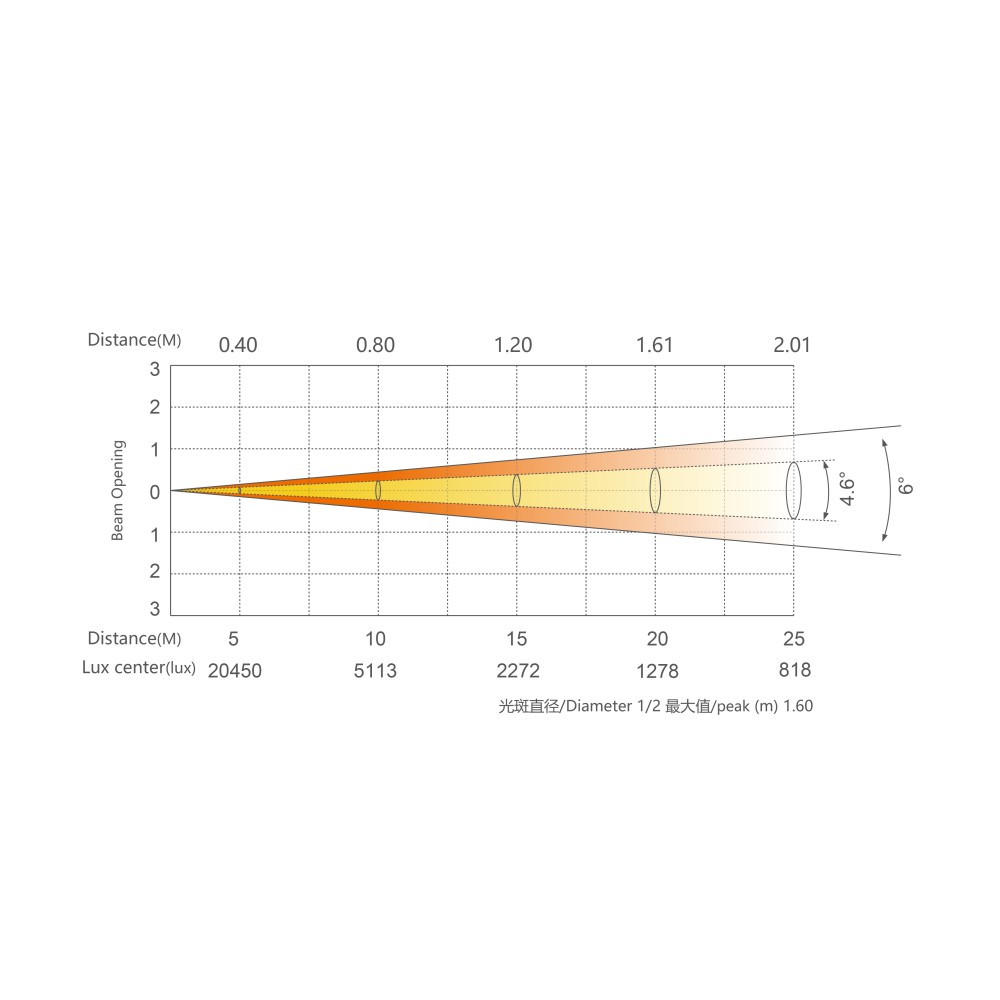

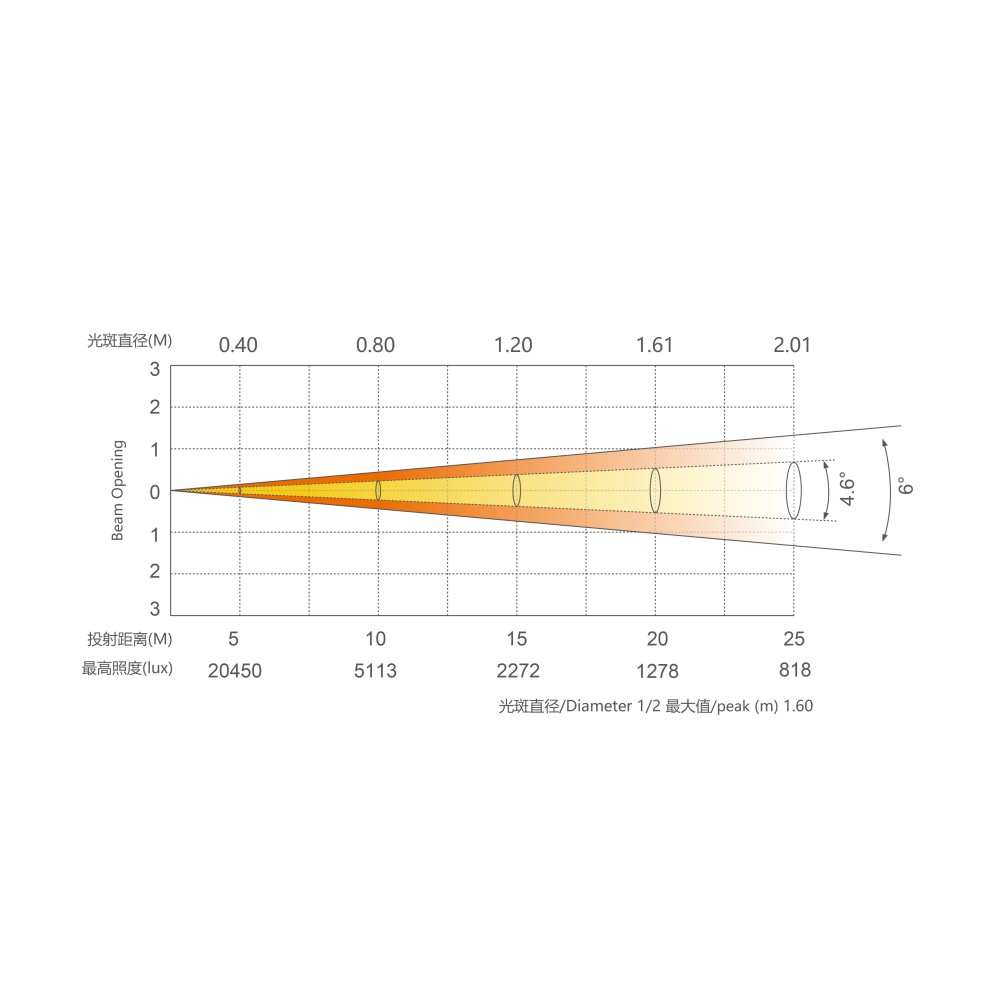

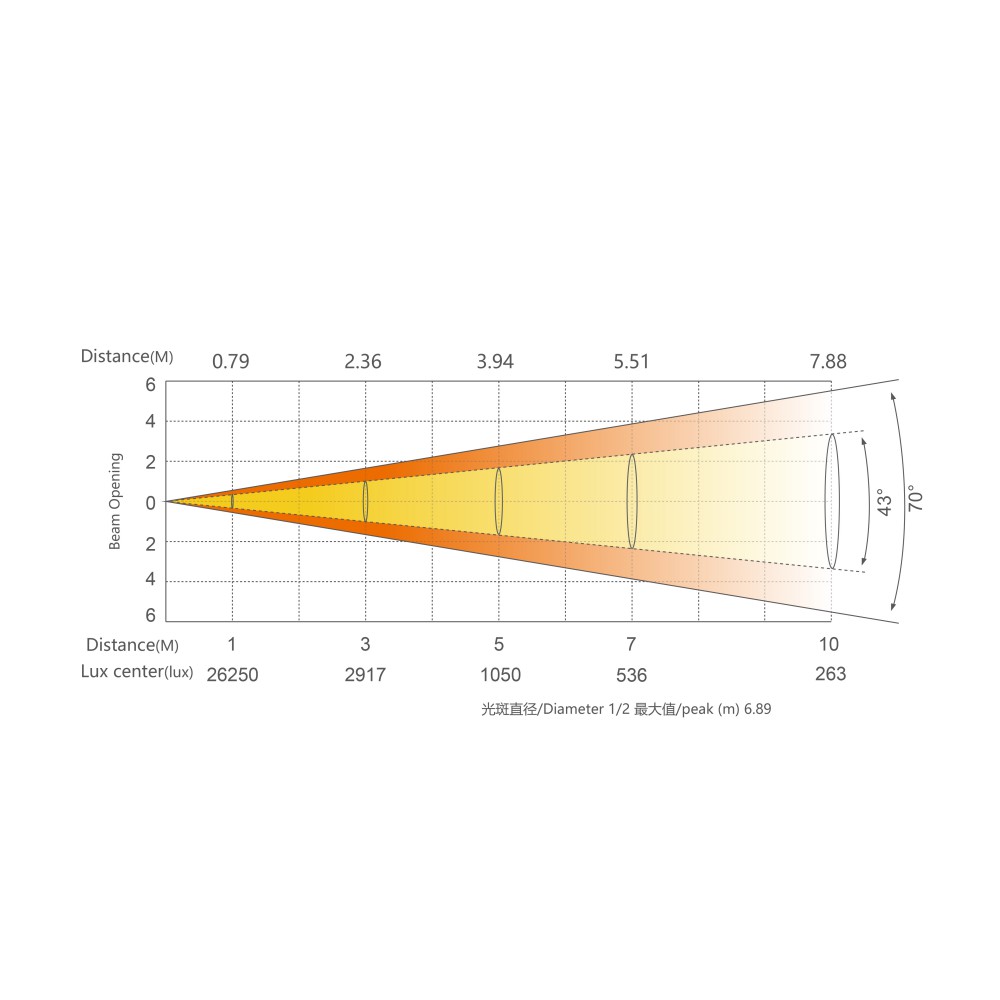

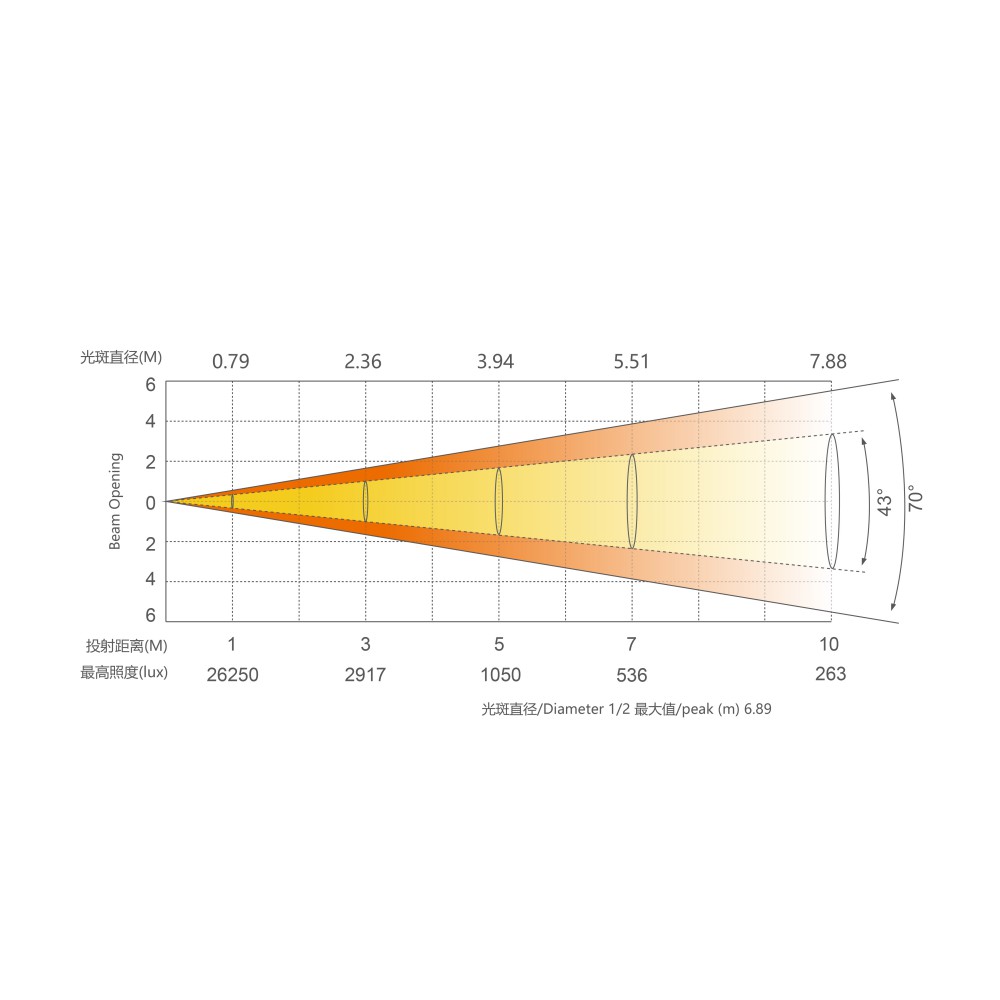

Illuminance Diagram
Moving wash
NW8-XT
NW8-XT is a new genertation of excellent moving wash with RGBAW LED source,optical Angle 4.6-70",equipped with HSlc intelligent colormixing system, canquickly modulate any desired color, can becmitinuously adjusted between1800K to 10000K :an achieve gorgeou!iynamic effect,high-precision and high-tech CCS intelligent col.nanagement system for auto color calibration, it is an ideal choice forconcerts, touring show, events, as ell as rental markets.
/upload/images/product/20250917/17581022186802566.png
Lightsource
RGBAW
/upload/images/product/20250917/17581022181861977.png
Angle
4.6°-70°
/upload/images/product/20250917/17581022182400662.png
Weight
21.55KG
/upload/images/product/20250917/17581020867409618.png
Max.Power
750W
Opticalsystem
Lightsource

19*50W RGBAW

Angle4.6-70°
llluminance

5m@14850lux,(4.6°)

Appearance
Size

421x316x480mm

NeightMagnalium and Die-cast
Casing21.55KG
Color

Black

Electrical specs
Voltage

100-240VAC,50/60Hz

Max.Power750W
Power Connection

power in and out

Signal socker3pin or 5pin in and out, RJ45 in and out
Control system

Pan/Tiltrotation

Infinite Pan/Tilt220°(8-16Bit扫描)

Dimmer0-100%24Bit
Cooling
Forced Convection
ControlDMX512、RDM、ARTNET、SACN、Neb server、
NFC、W-DMX(optional)
Con Personality

HSIC(15CH)SSP(13CH)TOUR(18CH)TR16(24CH)
CMY(16CH)PIXEL(23CH)

Work Environment
Ambient Temp

-20℃-45℃

IP Rated

IP66

Certification

CE
