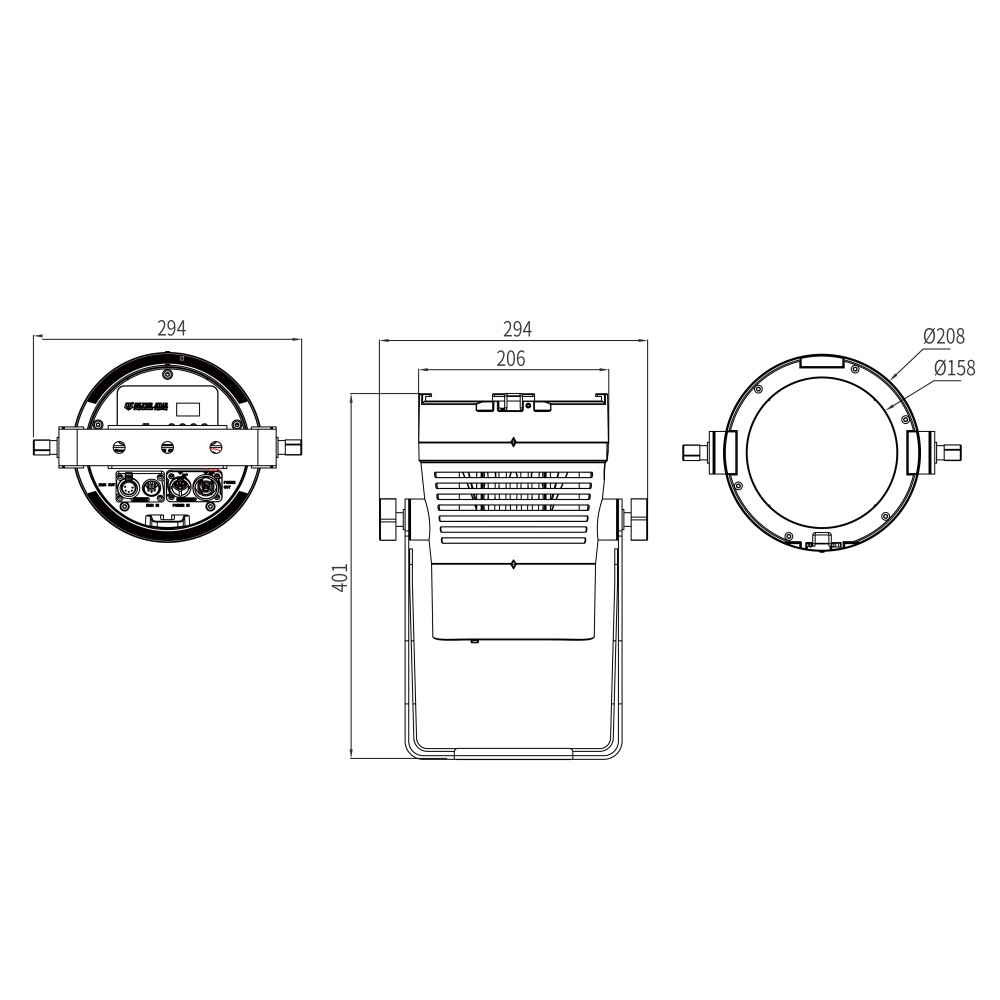

Dimension Drawing

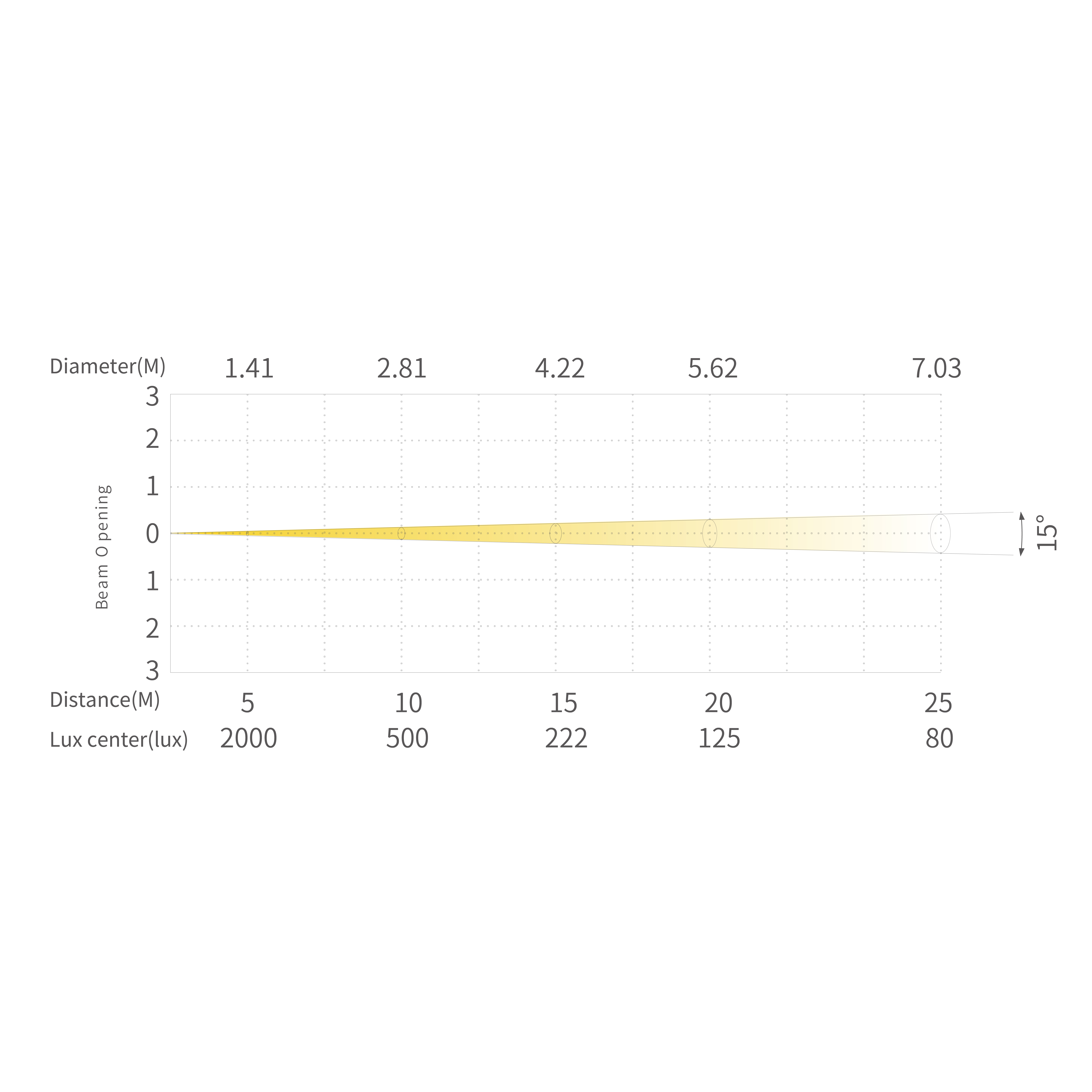

Illuminance Diagram
PAR light
TV one
TV one is a typical parcan which has single-facet-light efect. It is adopting the trailblazing creative RGBL source, possessing the stunning washing effect and the abundant color mixing effect. Besides，TV-one is implanted with CCS technology, and the CRI is greater than 85Ra. T-one is perfect for the theatrical and TV, Stucio applications.
/upload/images/product/20250917/17580907126261602.png
Light source
200WRGBL
/upload/images/product/20250917/17580911877588484.png
Luminous flux
9600lm
/upload/images/product/20250917/17580912265476859.png
Angle
15°-45°
/upload/images/product/20250917/17580912724642522.png
Weight
5.4kg
/upload/images/product/20250917/17580912822612013.png
Max. Power
200W
Optical system
Light source

200W RGBL

Luminous flux

9600lm

Angle

15°-45°

llluminance

2000lx @5m, 15°


Appearance
Size

401x294x209mm

Weight

5.5kg

Casing

 Magnalium and Die-cast

Color

Black


Electrical Specs
Voltage

100-240VAC,50/60HZ

Max.Power

200W

Power Connection

power in and out

Signal socket

3pin or 5pin in and out


Control System
Dimmer

0-100% 24 Bit

Cooling

Forced Convection

Control

DMX512、RDM、NFC

PersonalityBASIC、SSP、TOUR、TR16、HSIC、CMY
Dis play

On board Control , Custom Mode , 0-25Hz Strobe


Work Environment
Ambient Temp

-20℃-45℃

IP Rated

IP66

Certification

CE

Document Download

Product brochure
Product library
CAD
User manual
Product software
