Neptune BX one is an innovative fixture that uses a unique X-ray design to create an infinitely beam effect. 120W laser light source, 135mm large light aperture, 1.2° beam Angle , illuminance up to 100000lux at 20m. strong and sharp beam. equipped with rich gobos and prisms that can support various lighting effects. Professional CMY color mixing system help to switch the colors extremly smooth. Infinite X rotating effect, create 3D fantasy atmosphere. Using new aviation aluminum cover, lightweight only 19.6kg, IP66 protection perfect for indoor and outdoor.Suitable for urban landscape lighting, concerts, indoor performances and other applications.
Light source
120W LASER
Luminous flux
3300lm
Luminous flux
135mm
Angle
1.2°
Weight
21kg
Max.Power
200W
Optical system
Light source
LASER
Luminous flux
3300lm
Lens diameter
135mm
Angle

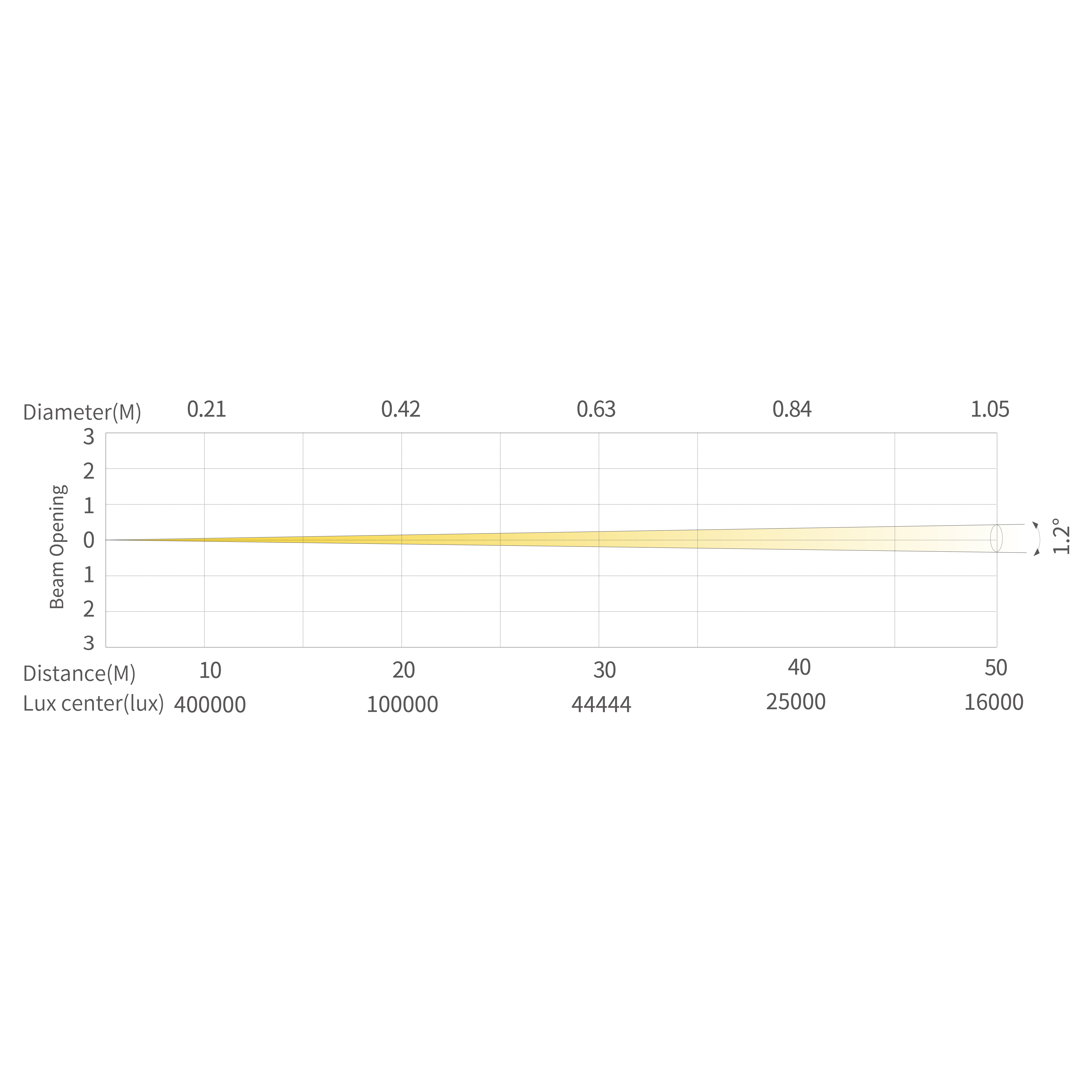

1.2°(20m @ 100,000lx)
Appearance
Size
330*222*518mm
Weight
19.6KG
casting
Die casting magnesium aluminum
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60HZ
Max.Power
200W
Power Connection
Power input and output
Signal socket
3pin or 5pin in and out
Control System
Pan/Tilt rotation
Infinite Pan, Tilt 270 (8-16 bit)
dimming
Opera dimming effect (0-100% 24Bit dimming)
Cooling system
Forced convection
Control protocol
DMX512、RDM、W-DMX(optional)、NFC
Functional effect
Display control, custom mode, 0-25Hz strobe
Channel mode
BASIC(19CH)、STANDARD(23CH)、EXTEND(25CH)
Effect synthetic system
Rotation gobo
12 rotation gobos
Colors
1 color wheel, 19 color + white, rainbow water effect
CMYK
CMY
prism
one 24 facet prism +one 5 linear prism, can be overlayed
