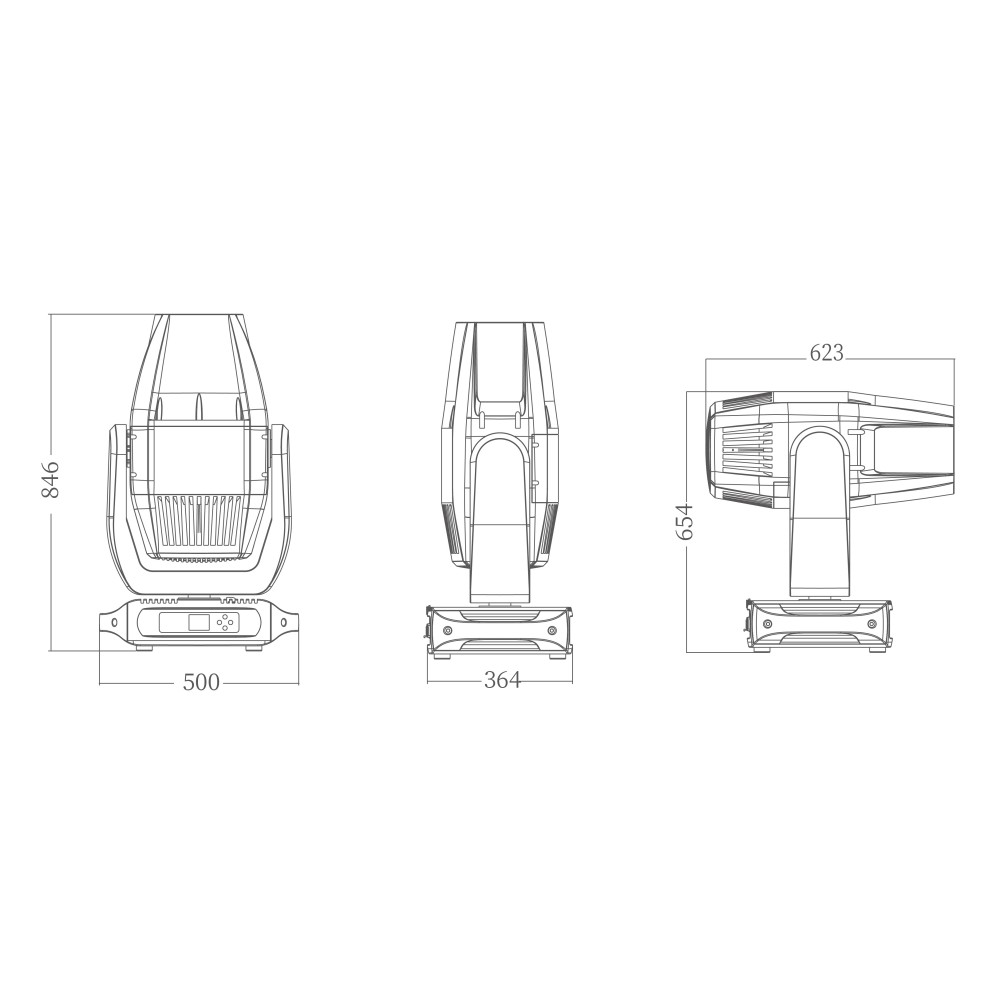

Dimension Drawing

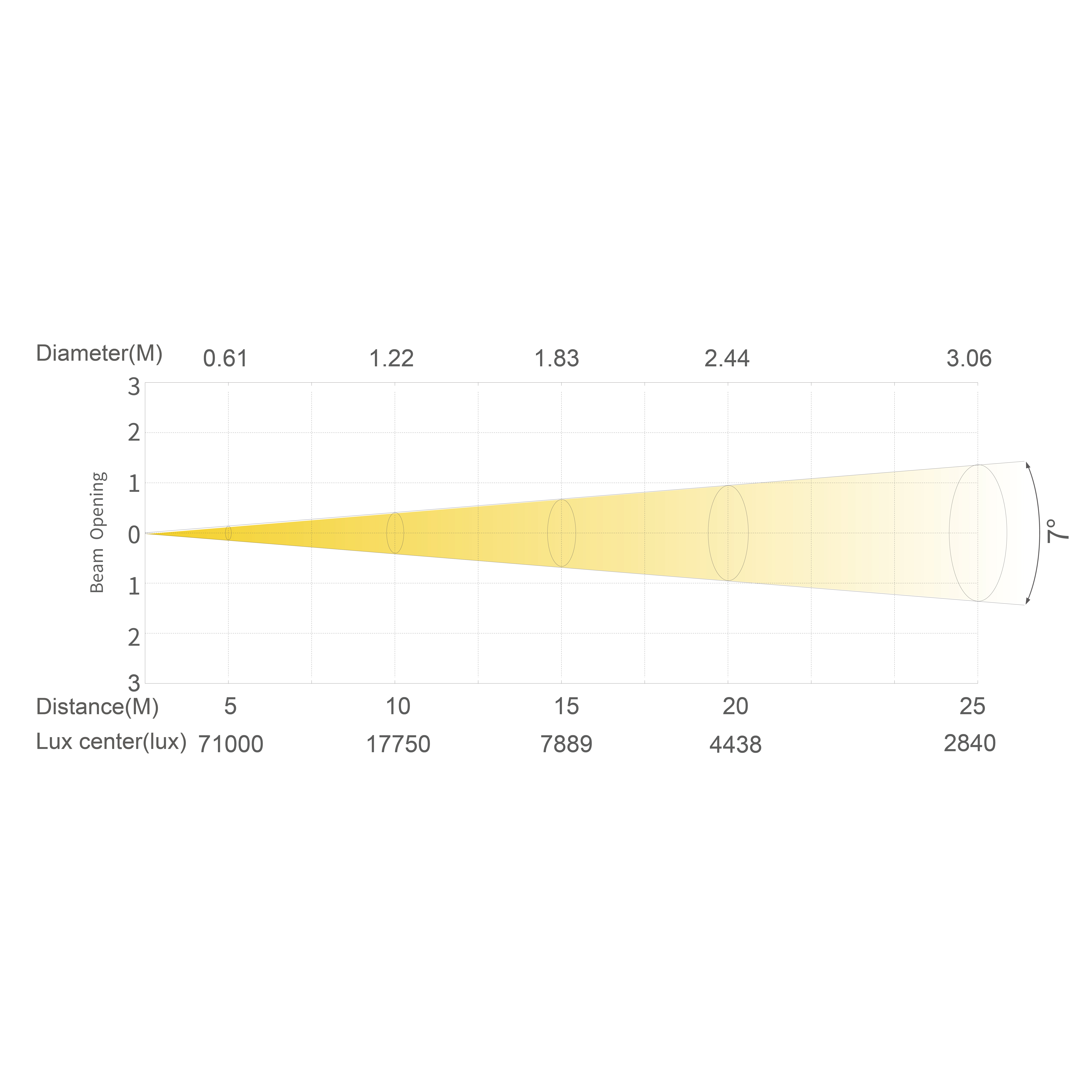

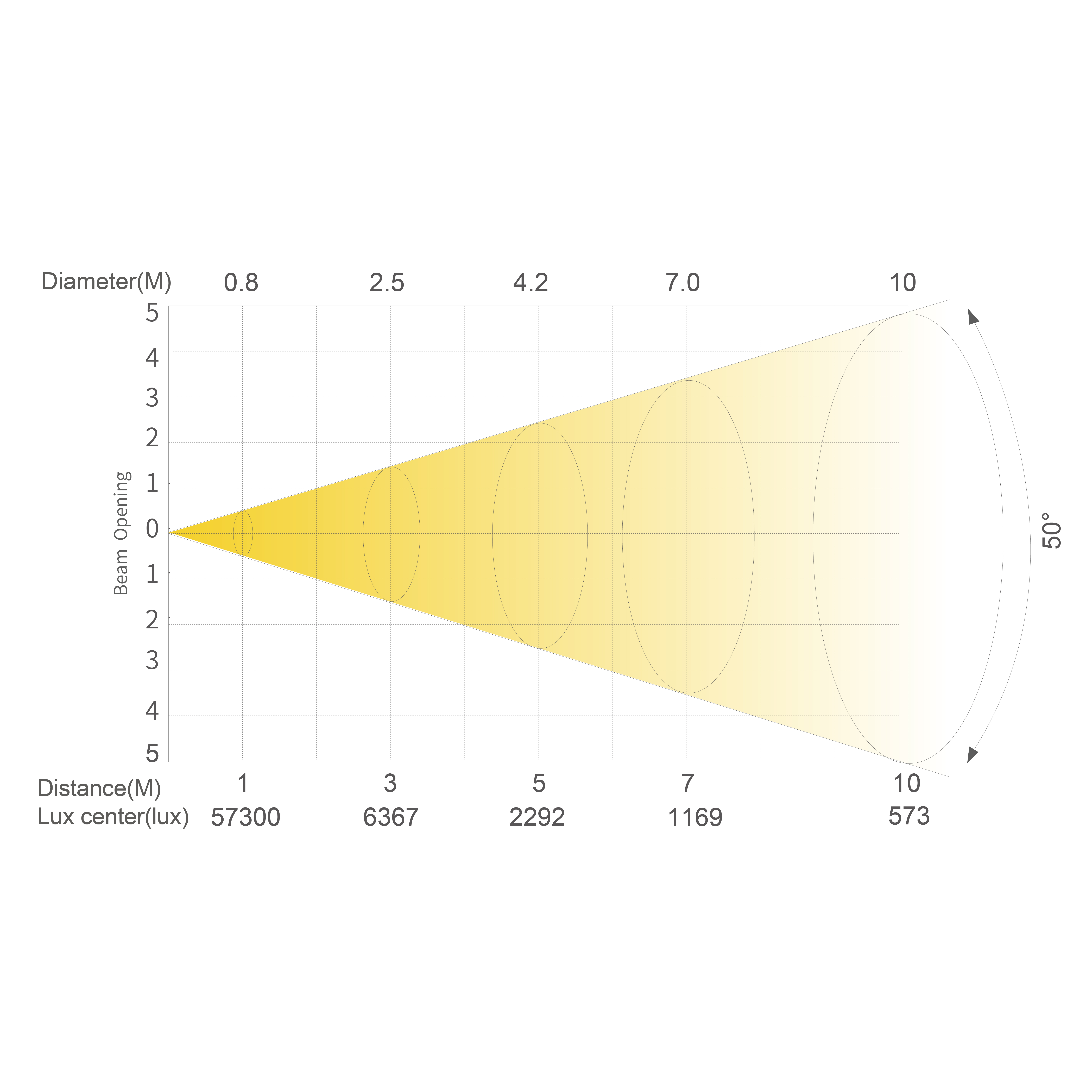

Illuminance Diagram
Laser Beam
BX3 Plus
Neptune BX3 Plus is a 500W IP66 laser beam light, 0.6°-30°, up to 50 times zoom range, illumination over 500,000 lux.Equipped with 12 rotating gobos and 19 static gobos,Multiple prism wheels combined to present a rich and diverse three-dimensional effect to meet more diversified scene applications. Equipped with CMY + CTO AI digital color mixing processing system, achieve rich color performance.Three frost effects meet different washing needs,Unique spherical effect wheel, providing a new dynamic effect display,24-bit dimming system, extreme dimming performance, providing smoother and more delicate brightness transition.
/upload/images/product/20251114/17630842351786284.png
Light source
500W LASER
/upload/images/product/20250918/17581586232003995.png
Lens diameter
180mm
/upload/images/product/20250917/17580824309795137.png
Angle
0.6°-30°
/upload/images/product/20250917/17580824585673288.png
Weight
33.6kg
/upload/images/product/20250917/17580824626420407.png
Max.Power
750W
Optical system
Light source

LASER

Lens diameter

180mm

Angle

0.6 -30°(20m at 410.000lux)


Appearance
Size

435x294x716mm

Weight

33.6kg

casting

Magnalium and Die-cast

Color

Black


Electrical Specs
Voltage

100-240VAC 50/60Hz

Max.Power

750W

Power Connection

Seetronic power input and output

Signal socket

3pin or 5pin in and out,RJ45 in and out


Control System
Pan/Tilt rotation

Infinite Pan/Tilt 270°

Dimmer

0-100% 24Bit

Cooling

Forced Convection

Control

DMX512、 RDM、ARTNET、SACN、CRMX(optional)、NFCBluetooth

Display

On Board Control, Custom Mode. 0-25Hz Strobe

Con Personality

BASIC(26CH)、STANDARD(32CH)、EXTEND(38CH)


Effect synthetic system
Static Gobo

19 gobos+white

Colors

One color wheel(19 color+white, rainbow-flow effect)

Rotating Gobo

12 gobos+white, Gobo-flow, Gobo shake,Bi-directional rotation.

Control

DMX512、 RDM、ARTNET、SACN、CRMX(optional)、NFCBluetooth

CMYK

CMY wheel,linear CTO function

3 Frosts

Light+Medium+Heavy

Animation Wheel

Bi-directional rotation,Speed adjustfable

Prism

Prism 1:5 Facet prism+8 Facet prism+2 Linear prism+4 Linear prism+6 Linear prism
Prism 2: 4 Facet prism+Eliptical mirror


Work Environment
Amblent Temp

-20°C-45°C

Certification

CE

IP Rated

IP66
