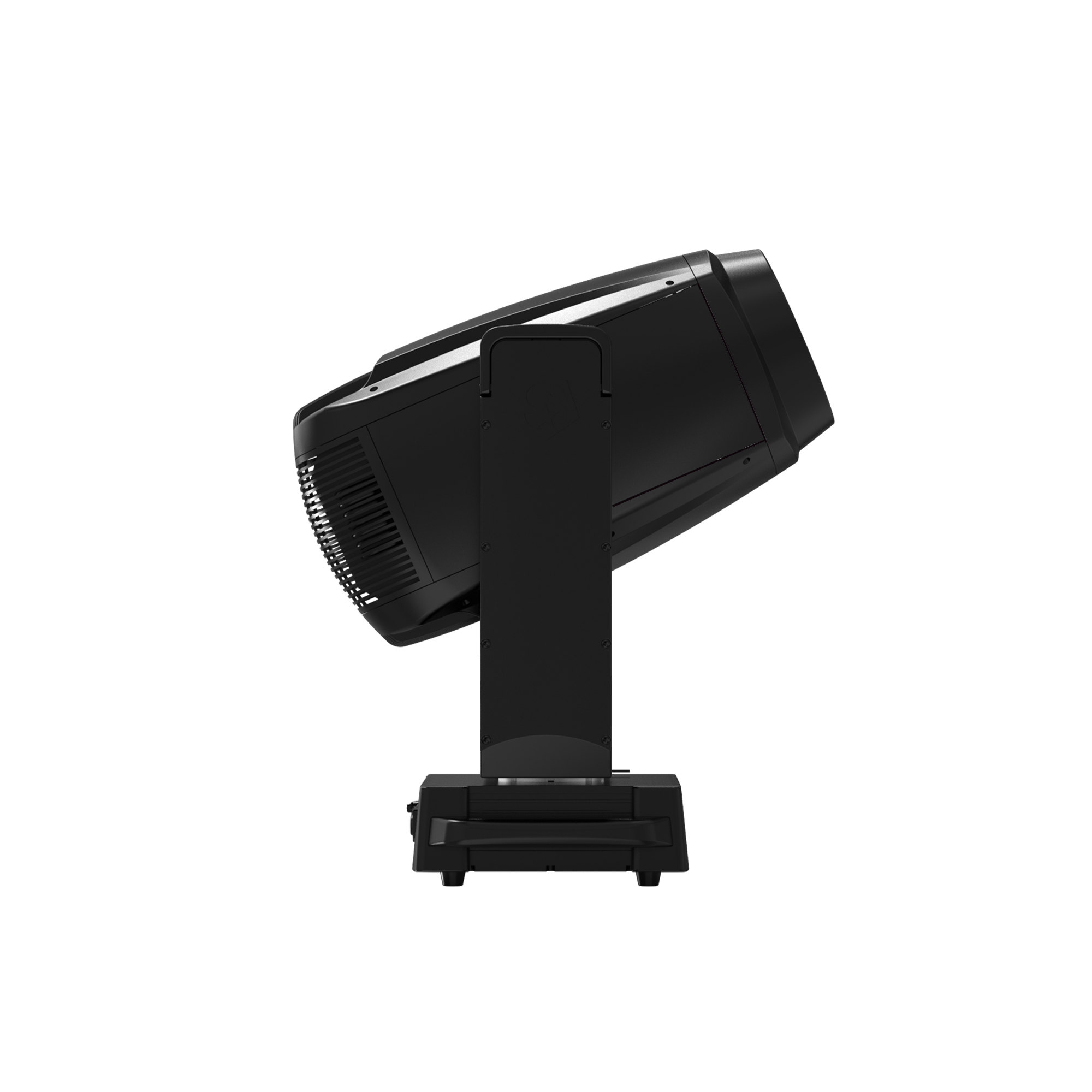

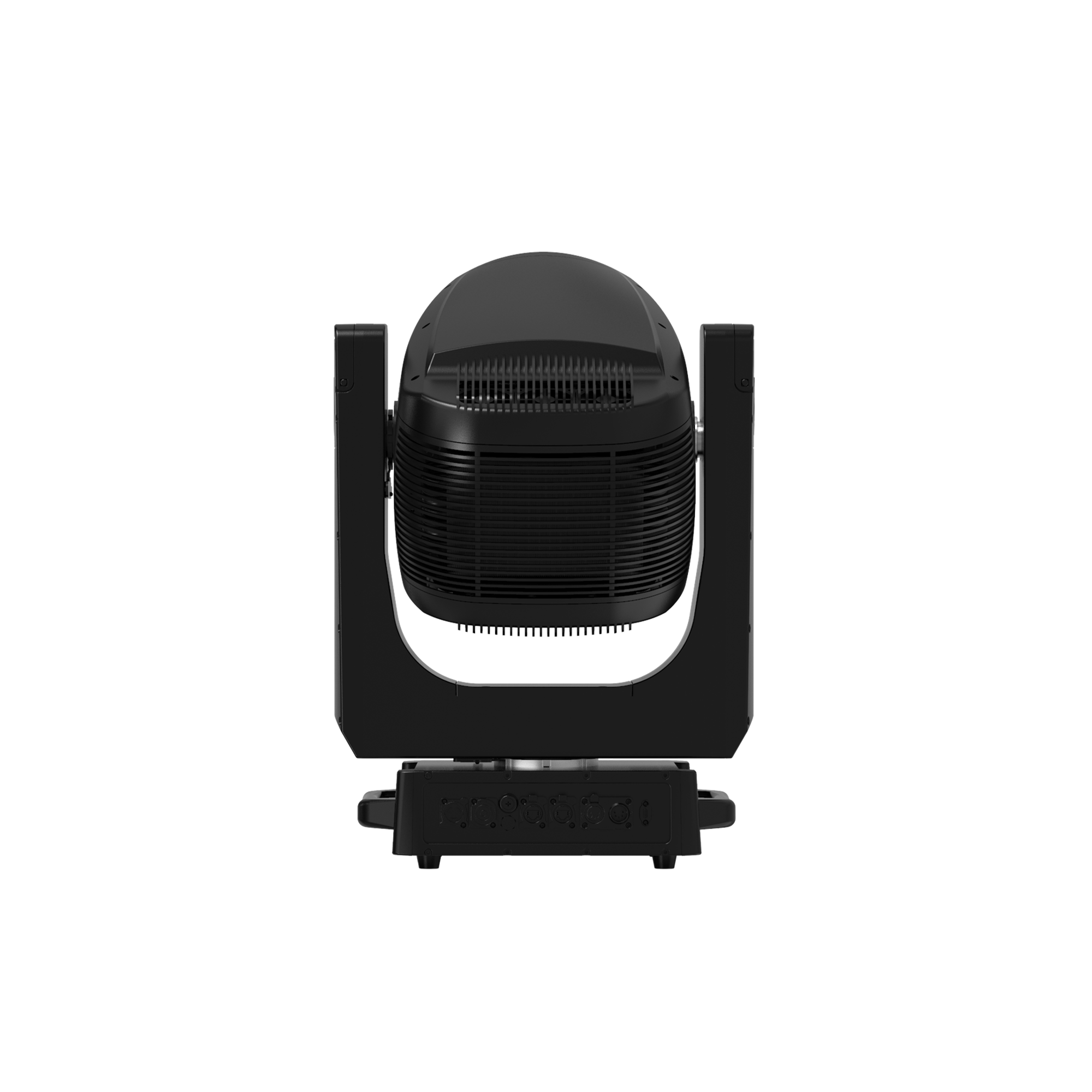

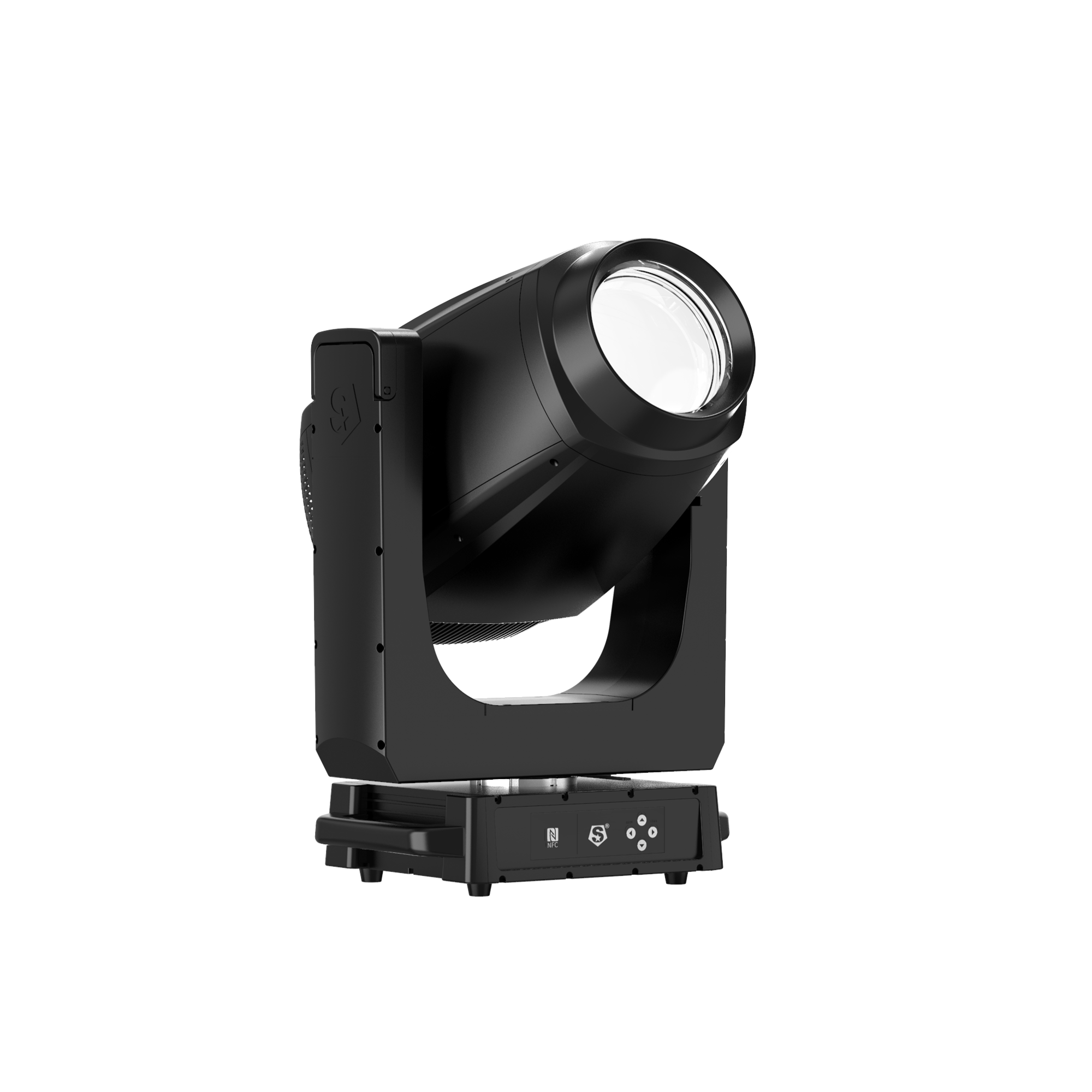

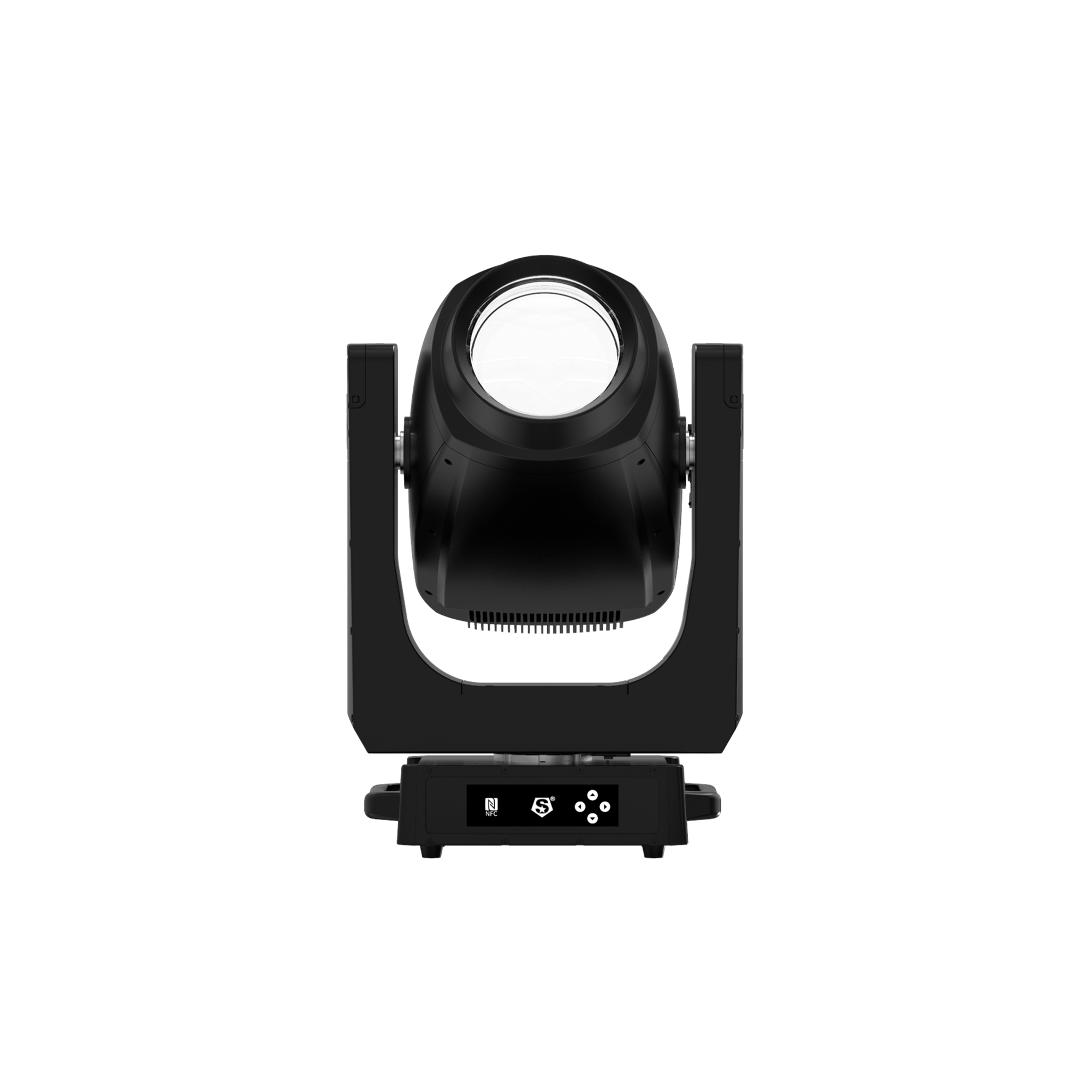

Real Photo

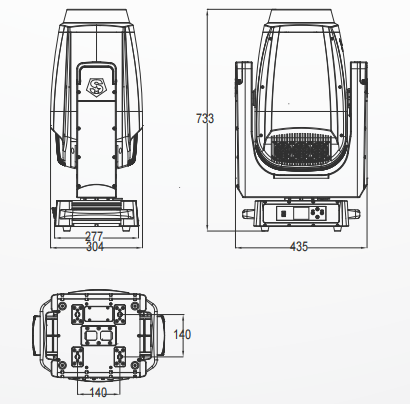

Dimension Drawing

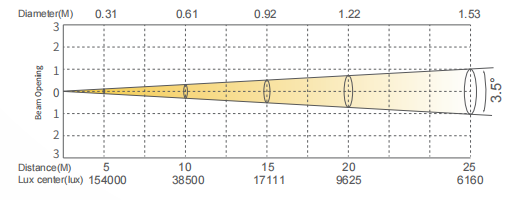

Illuminance Diagram
Profile
N12
Neptune N12 is a 4-in-1 moving head profile light integrating framing, gobo, wash and beam functions. it delivers 154,000 lux at 5 meters, equipped with four +90° rotatable cutting blade sand a 3.5°-53° ultra-wide zoom. Dual gobo wheels create rich dynamic effects, and the CMY+CTO system offers precise color control. Weighing 35.8kg for easy rigging, it features lP66 protection for stable all-weather operation.
/upload/images/product/20260505/17779717594702732.png
Luminous flux
35140lm
/upload/images/product/20260505/17779717622193977.png
Angle
3.5--53°
/upload/images/product/20260505/17779717678252043.png
Weight
35.8kg
/upload/images/product/20260505/17779717679876939.png
Max. Power
1000W
Optical system
Light source

1000W

llluminance

5m@154,000lux(3.5°)

Luminous flux

35140lm

Angle

3.5°-53°


Appearance
Size

435x294x736mm

Casing

 Casing Flame-retardant plastic (v0) Die-cast aluminum

Weight

35.8kg

Color

black



Electrical Specs
Volage

100-240VAC,50/60HZ

Max.Power

1000W

Pawer Connection

power in and out

Signal socket

3pin or 5pin in and out, RJ45 in and out

Control System
PanTilt rotation

Infinite PanTilt 270°(8-16bit)

Dimmer

0-100%24Bit

Control ProtocolDMX512、RDM、SACN、ARTNET、CRMX(optional).
NFC、 WFl、 Bluetooth
CoolingForced Convection
DisplayOn board Contrdl , Custom Mode,0-25Hz Strobe
Channel ModesBASIC(37CH)/STANDARD(45CH)/EXTEND(60CH)
Effect synthetic system
CMYK

CMY+CTO(3000K-7000K)

Color Wheel

One color wheel(6 colors + White, Rainbaw-flow effect)

Rotating Gobo Wheel

Two rotating gobo(7 Gobos+ white, Gobo-flow effect
Gobo shake, Bi-directional rotation)

Animation wheel1 animation wheel
Iris5-100% linearly adjustable with macro
FrostLight+Heavy
Prism1pc 5F prism, 1pc 5F linear prism
Framing system

4 shutter blade, Each blade's angel and direction can be
individual controlled, fuly blackout: The whole Framing
module is +90°.

Work Environment
Ambient Temp

-20°C-45°C

IPf Rating

IP66

CertificationCE Certified
