Real Photo

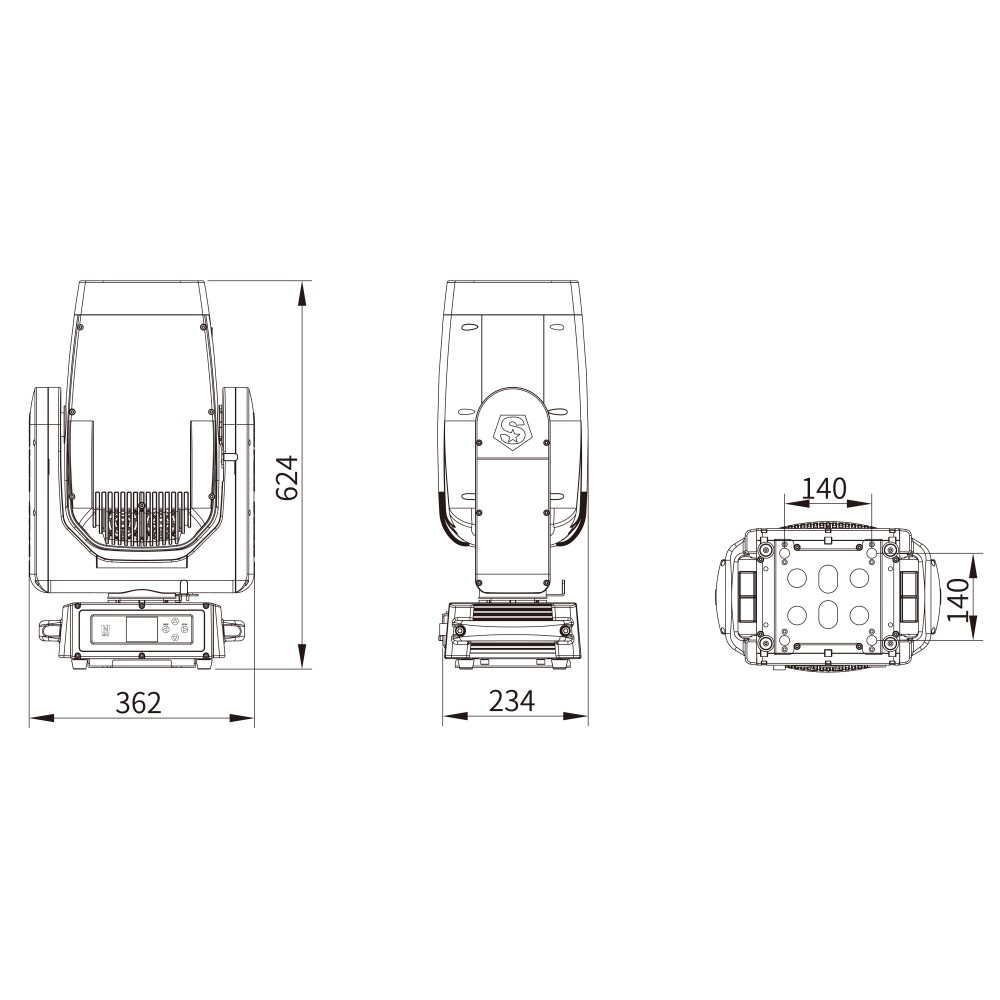

Dimension Drawing

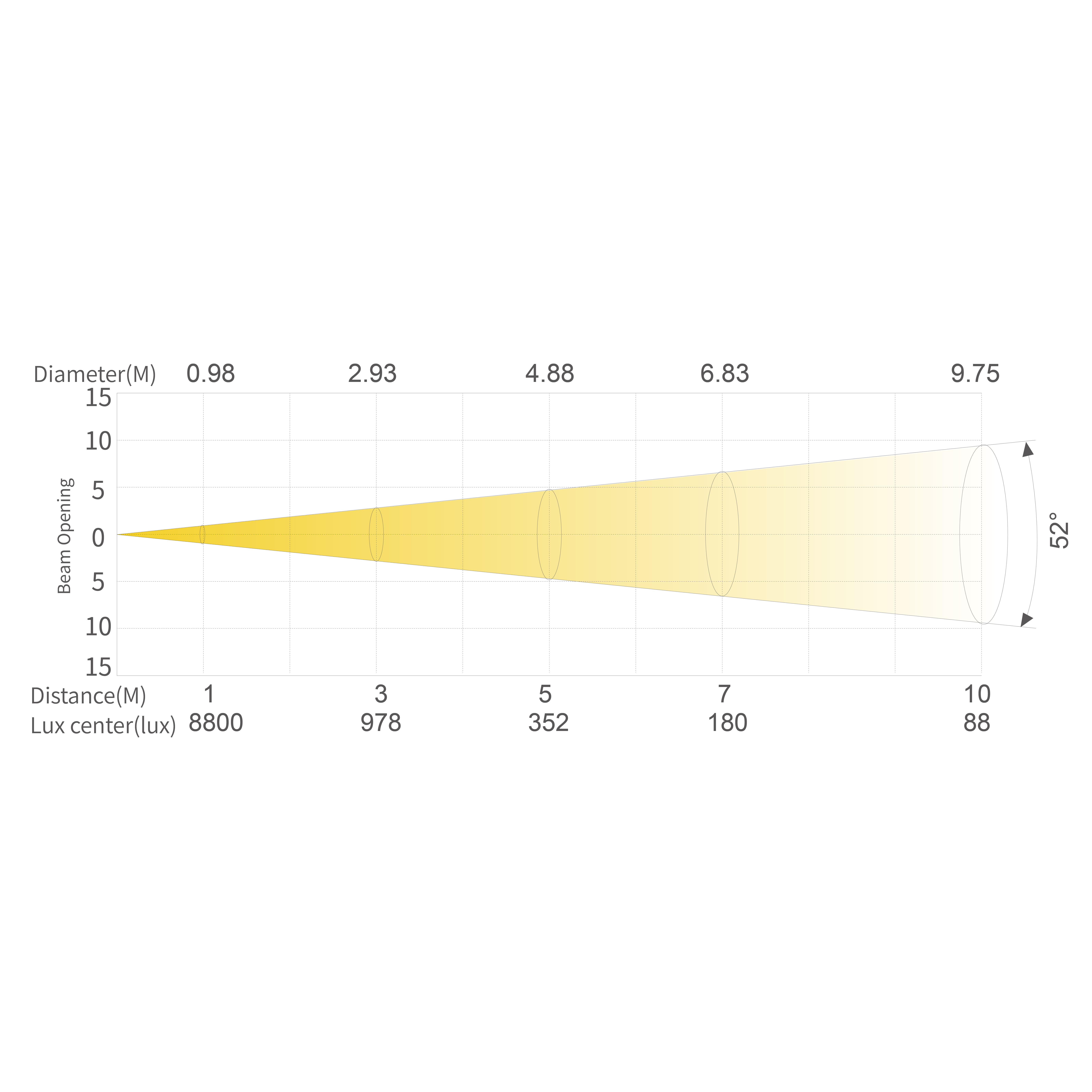

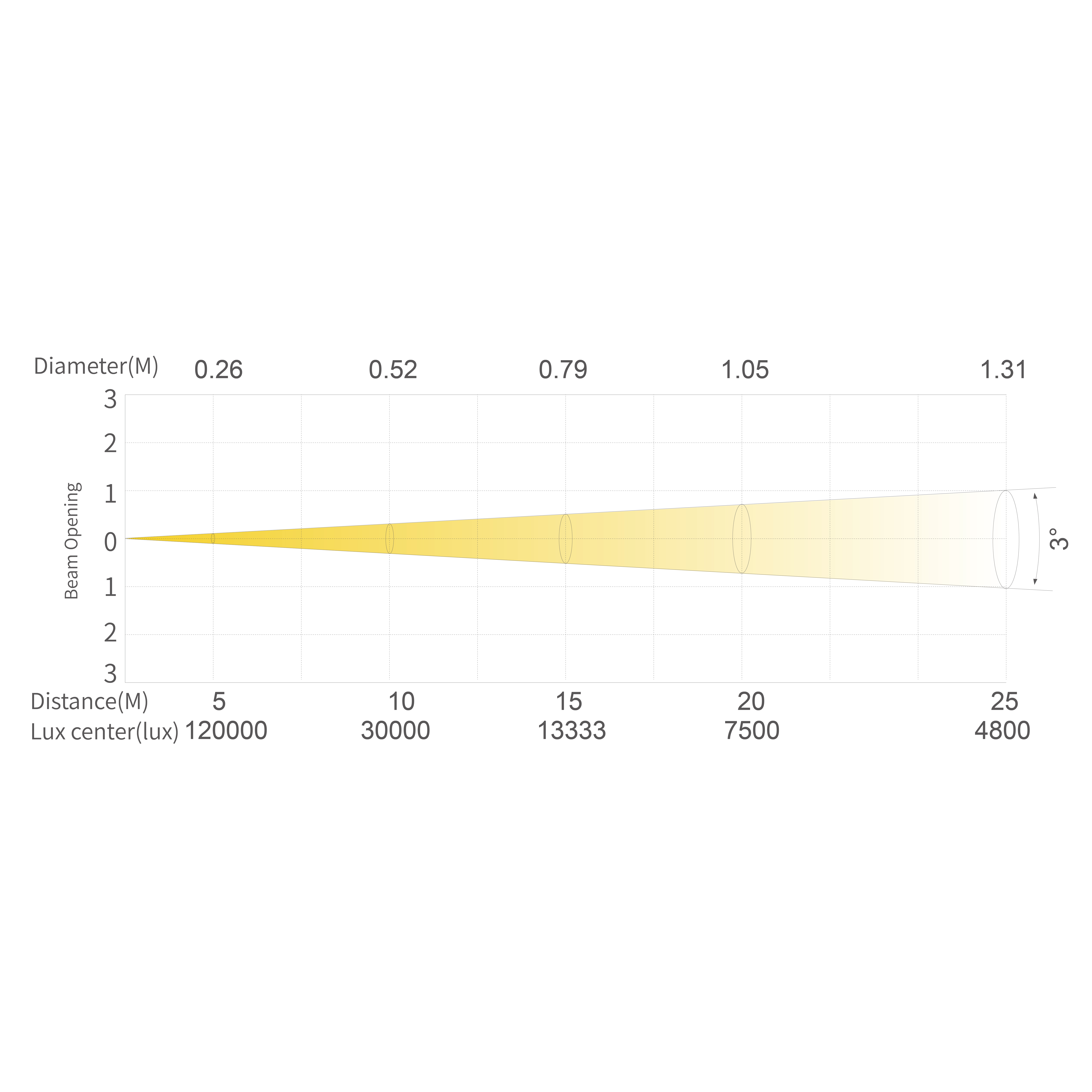

Illuminance Diagram
Profile
None-X
Neptune N one-X is an excellent lP66 moving profle with efficient optical system, CMY professional color mixing system,17 times optical zoom, optical Angle 3°-52°.X/Y is faster and more accurate. Gobo switching function is fast and sensitive. instantly switch a rich and colorful gobo efect, bringing vividly perfomance to the audience. Suitable for both indoor and outdoor .it is a perfect product for theater concert,theme park,amusement venues. etc.
/upload/images/product/20250917/17580824114871427.png
illuminant
450W LED
/upload/images/product/20250917/17580824242068850.png
Luminous flux
13100lm
/upload/images/product/20250917/17580824309795137.png
Angle
3°-52°
/upload/images/product/20250917/17580824546013969.png
CRI
RA:70
/upload/images/product/20250917/17580824585673288.png
Weight
27.2kg
/upload/images/product/20250917/17580824626420407.png
Max.Power
550W
Optical system
illuminant

450W LED

Angle

3°-52°

Luminous flux

13100lm

illuminance

5m@120,000lux(3°)

CRI

RA:70


Appearance
Size

362×234×624mm

Casing

 Die casting magnesium aluminum

Weight

27.2kg

Color

black



Electrical Specs
Volage

100-240VAC,50/60HZ

Max.Power

550W

Pawer Connection

Power input and output

Signal socket

3pin and 5pin in and out

Control System
Mechanical Movement

Horizontal infinite rotation, vertical 270° (8‑16Bit scanning)

Dimming

Theatrical-grade dimming effect (0‑100% 24Bit dimming)

Control ProtocolDMX/RDM//NFC/CRMX (optional)
Cooling SystemAir cooling
Function EffectsDisplay panel controls static, custom mode, 0‑25Hz strobe
Channel ModesBASIC(34CH)/STANDARD(41CH)/EXTEND(56CH)
Effect synthetic system
CMYK

CMY+CTO

Color Wheel

6 + 1 color filters

Rotating Gobo Wheel

7 rotating gobos + white light, gobo scrolling effect, forward/reverse rotation

Effects Wheel1 rotating effects disc, water ripple and flame effects
Iris5‑100% linear adjustable iris, with macro function
Diffusion1 light diffusion, 1 heavy diffusion
Prism1 eight‑faceted prism, forward/reverse rotation, adjustable speed
Matrix Lens1 six‑segment matrix lens
Shutter

4 shutter blades, smooth cutting, each blade can be controlled independently for direction and angle;

single blade can fully close, entire shutter module can rotate ±90°

Work Environment
Operating Temperature

-20°C-45°C

Waterproof Rating

IP66

CertificationCE Certified
