The ECLIPSE 1000 RGBAL is using the innovative 5 colors optic design. It comes with intelligent HSIC color management system, can easily pick up all colors you need. With precise preset 48 common colors, 1800K-10000K CCT, the perfect dimming curve, and the crystal-clear projection, and also it compatible with all our existing popular lenses. The ECLIPSE 1000 RGBLA is designed for the professional theatre / opera / rental / show applications!
Light source
RGBAL
Luminous flux
5157lm
Angle
19°
CRI
Ra：95
Weight
8.3kg
Rated Power
300W
Optical system
Light source
250W RGBAL
Luminous flux
5157lm
CCT
1800K-10000K
Angle

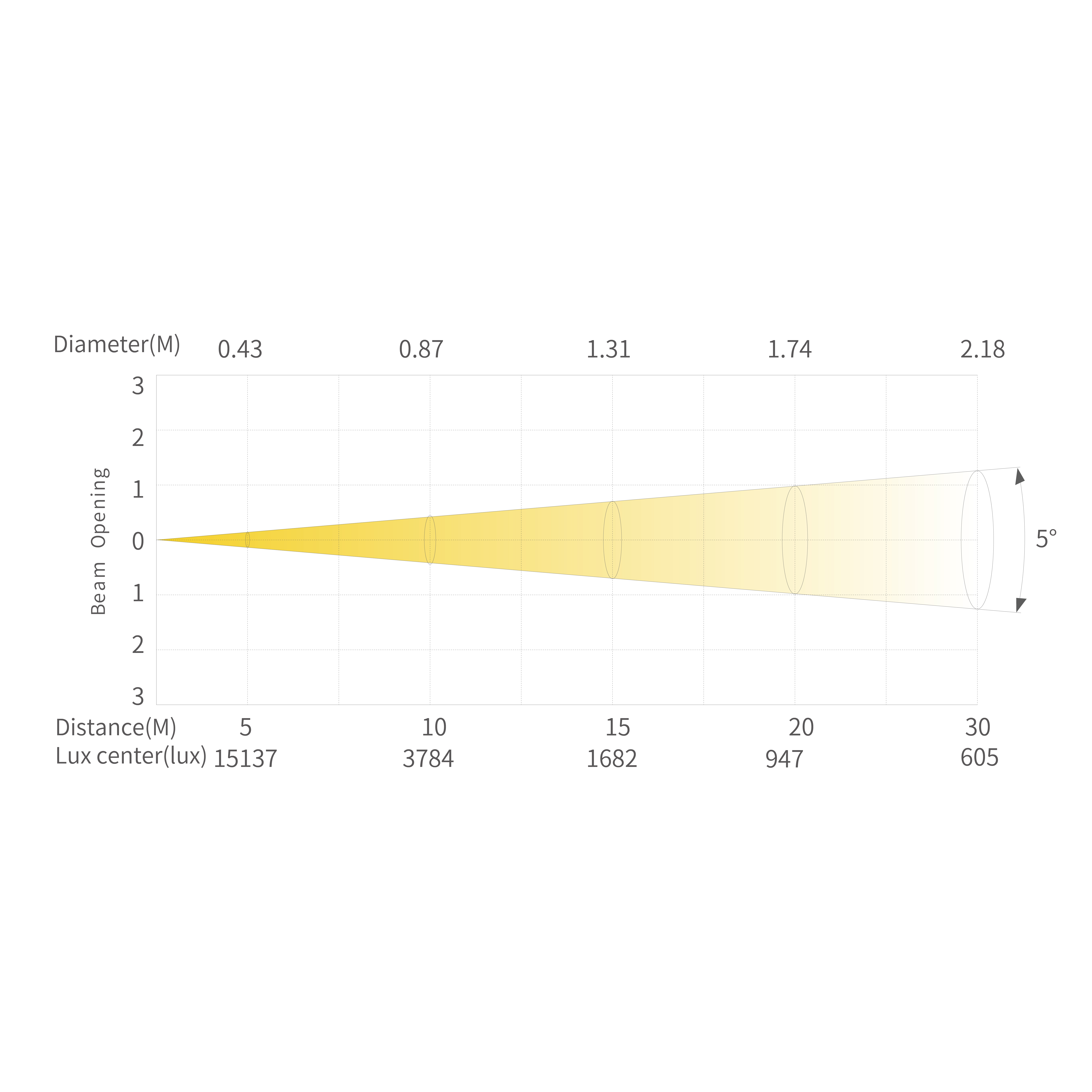

5°/10°/14°/19°/26°/36°/50°/15°-30°/25°-50°
CRI
Ra≥90
Appearance

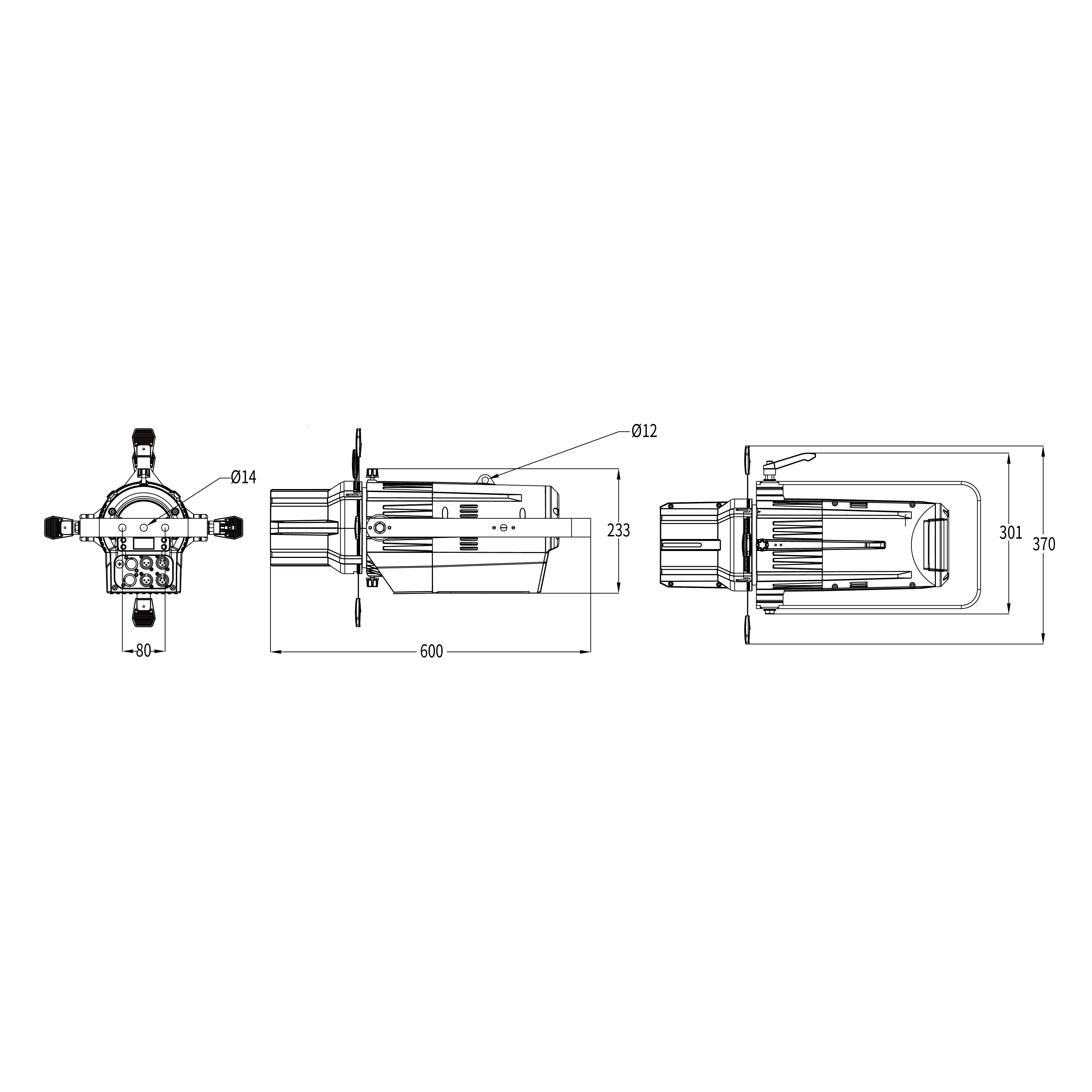

Size
600x370x370mm
Casing
Die-cast aluminum
Weight
8.3kg
Color
Black
Electrical Specs
Woltage
110V-240VAC，50/60Hz
Rated Power
300W
Power Connecion
power in and out
DMX XLR
DMX in and out
Control System
Dimmer
0-100% 16Btt
Cooling
Forced Convection
Display
On board Control, 0-25Hz Strobe
Control
DMX512 RDM
Con Personality
HSIC(8CHS)，SDO(6CHS)，SIMPLE(8CHS)，COLOR8BIT(11CHS)， COLOR 16BIT(17CHS)
