Real Photo

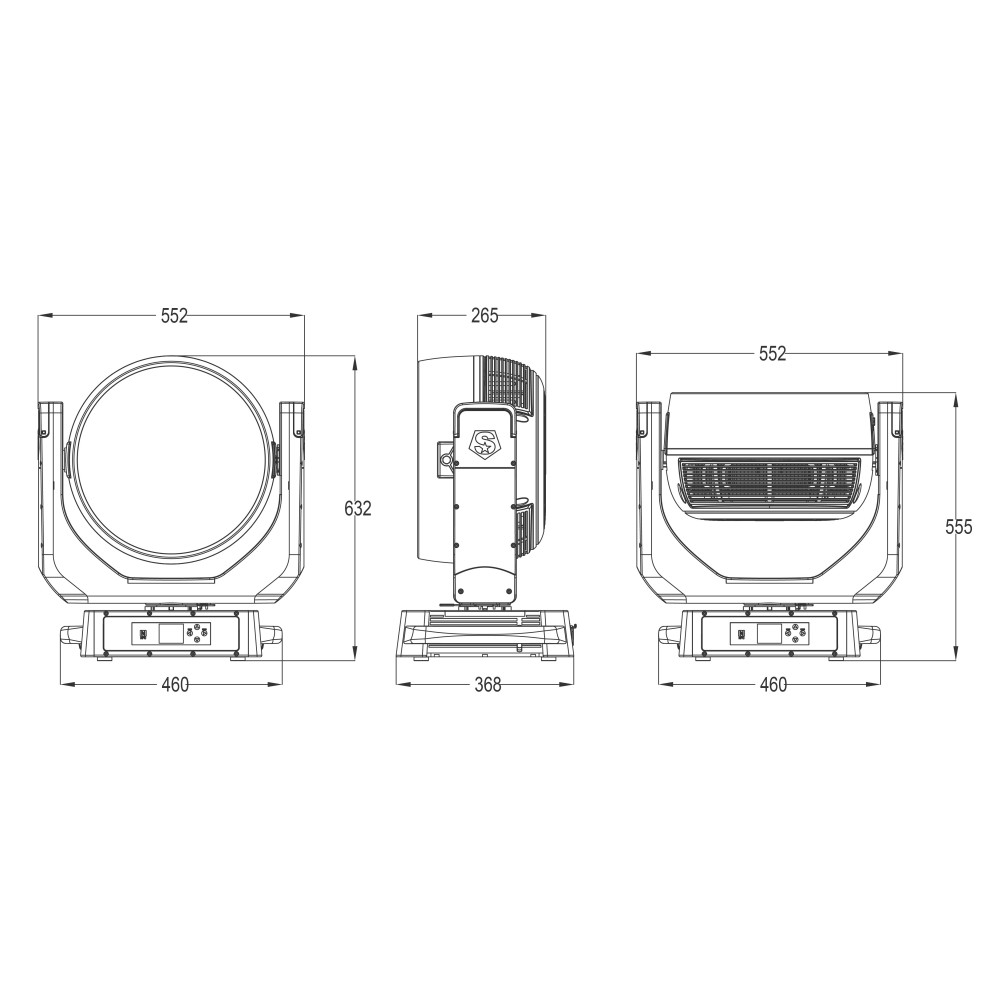

Dimension Drawing

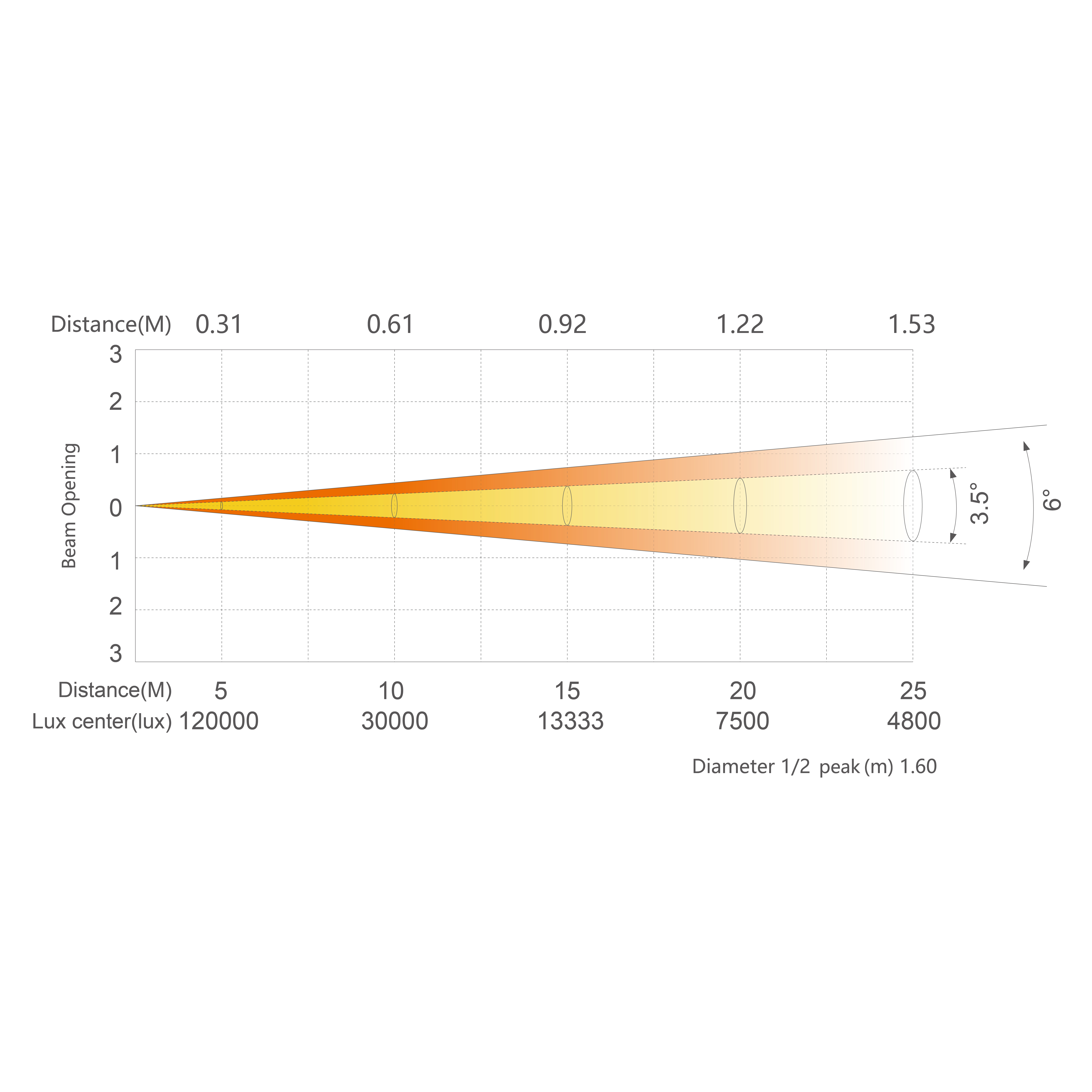

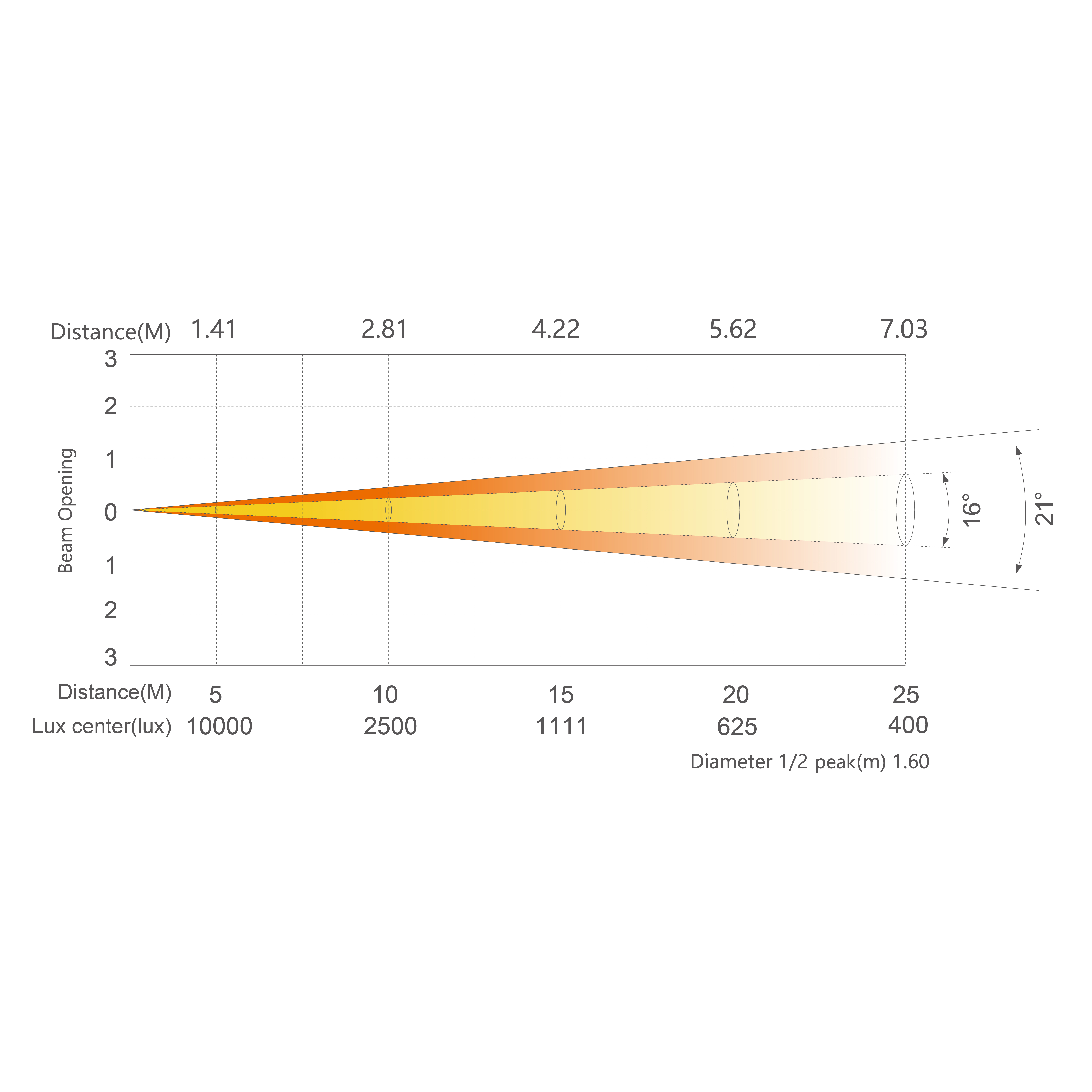

Illuminance Diagram
Moving wash
NW10-X
NW10 is a new genertation of excellent moving wash with RGBL LED source.optical Angle 3.5-60°, equipped with HSIC inteligent color mixing system, can quickly modulate any desired color, can be continuously adjusted between 1800K to 10000K, pixel control function, can achieve gorgeous dynamic effect high-precision and high-tech CCs intelligent color management system for auto color calilbration, it is an ideal choice for concerts, touring show events, as well as rental markets.
/upload/images/product/20250917/17581022186802566.png
Light source
RGBL
/upload/images/product/20250917/17581022186294850.png
Luminous flux
2400lm
/upload/images/product/20250917/17581020867409618.png
Max.Power
1800W
/upload/images/product/20250917/17581022182400662.png
Weight
38.1KG
Optical system
Light source

37x60W  RGBL  LED

Luminous flux24000lm
CRIRA: 85(3200K、4000K、5600K、6500K)
Angle3.5°-60°
lluminance

5M@120,000 lx(3.5°)

Appearance
Size

552x368x632mm

Casing Magnalum and Die-cast
Weight38.1KG
Color

Black

Work Environment
Ambient Temp

-20℃-45℃

IP Rated

IP66

Certification

CE

Electrical Specs
Voltage

100-240VAC,50/60Hz

Max.Power1800W
Power Connectionpower in
Signal socket

3pin or 5pin in and out,RJ45 in and out.USB-C

Control System
Pan/Tilt rotation

Infinite Pan/Tilt 270°(8-16bit)

Dimmer0-100% 24Bit
CoolingForced Convection
DisplayOn Board Control, Custom Mode. 0-25Hz Strobe
ControlDMX512、RDM、ARTNET、SACN、BT、NFC、W-DMX(optional)
Con Personality

HSIC(28CH)/SSP(26CH)/TOUR(33CH)/
TR16(38CH)/CMY(32CH)/PIXEL(174CH)

Document Download

Product brochure
Product library
CAD
User manual
Product software
