EC6 TW

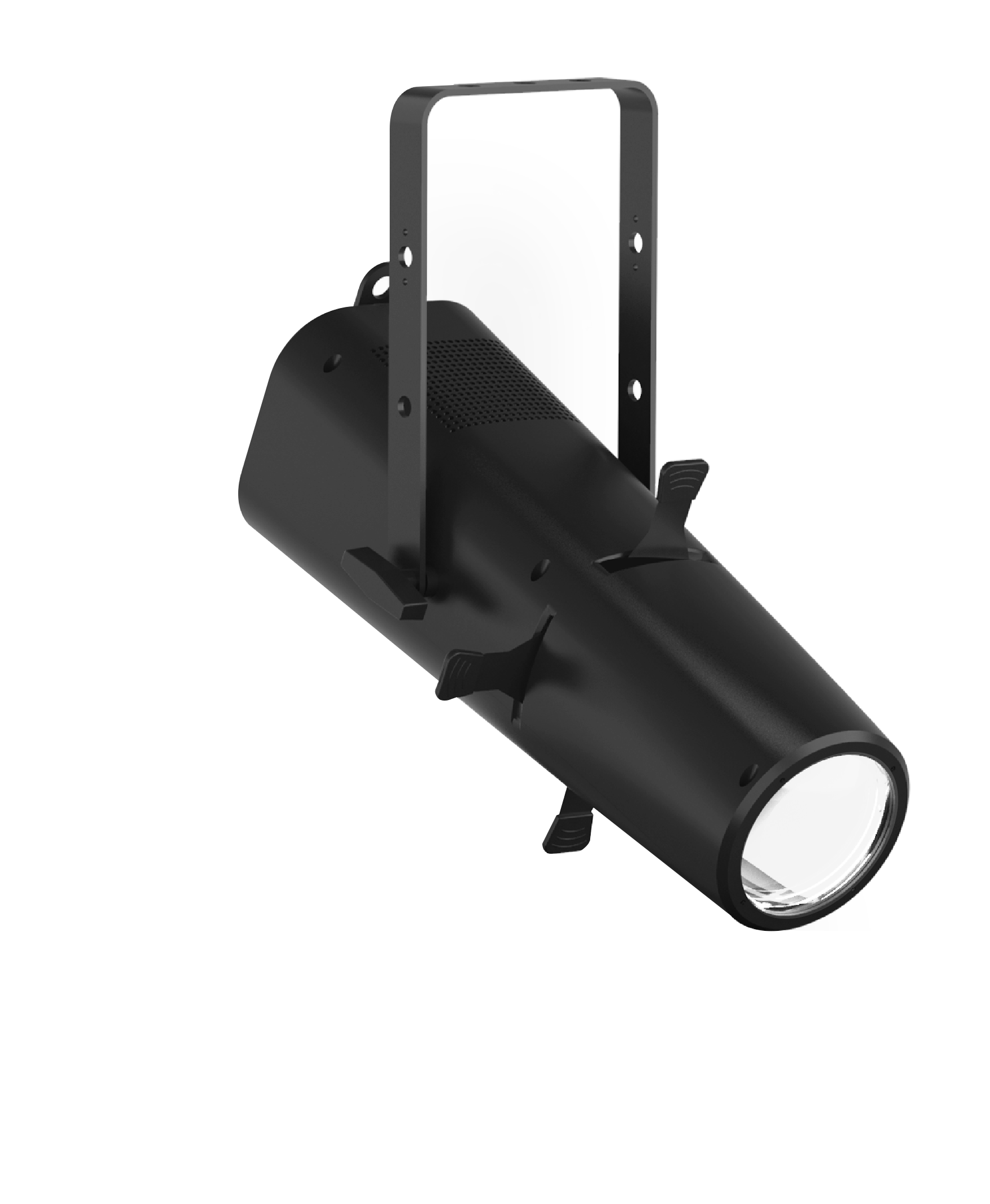

Stager EC6 T is a compact and lightweight profile, with uniform color mixing, clear projection. Equipped with intelligent color manage ment system CCS, Built-in 1800-20000k high CRI CCT. lts integrated structural design. holding the sharp shutter framing system, and manual zoom 25-50". it is perlect for theaters,multi-functional hall, church,conference room,and TV stations applications etc.
/upload/images/product/20260505/17779731904741236.png
Light source
200W
/upload/images/product/20260505/17779717594702732.png
Luminous flux
7121lm
/upload/images/product/20260505/17779717622193977.png
Angle
25°-50°
/upload/images/product/20260505/17779717678252043.png
Weight
5.8KG
/upload/images/product/20260505/17779717679876939.png
Power
200W
Optical system
Light source

200W

Angle

25°-50°

Luminous flux7768lm
CTO1800-20000K
CRI Ra97


Appearance
Size

568X224X191mm

Casing

Flame-retardant plastic(V0)

Welght5.84kg
Color
Black


Electrical Specs
Voltage110V-240VAC,50/60Hz
Rated Power200W
Power Connectionpower in and out
DMX XLR

3pin or 5pin in and out

Control System
Dimmer0-100%16Bit
CoolingForced Convection
Control

DMX/RDM

DisplayOn board Control, 0-25Hz Strobe
ConPersonality

UNO(1CHS),VW.D(2CHS),VW.F(3CHS), STD.P(5CHS)

Framing system

4 blades, manual shutter



Work Environment
Ambient Temp0°-45°
CertificationCE、MET
IP RatedIP20
