NB5 is the lP moving beam equipped with 350W LED, which delivers unbelievable strong and powerful output. With 200mm super big aperture lens, it can provide a solid, fat, sharp and clean beam . lt has a super-fast and precise XY movement, combining with gobo ,prism and abundant color effect. A perfect product for outdoor performance,very suitable for landscape lighting, cultural tourism markets, theme parks,etc !
Luminous flux
5500lm
Angle
2°
weight
30kg
Max Power
500W
Optical system
Angle

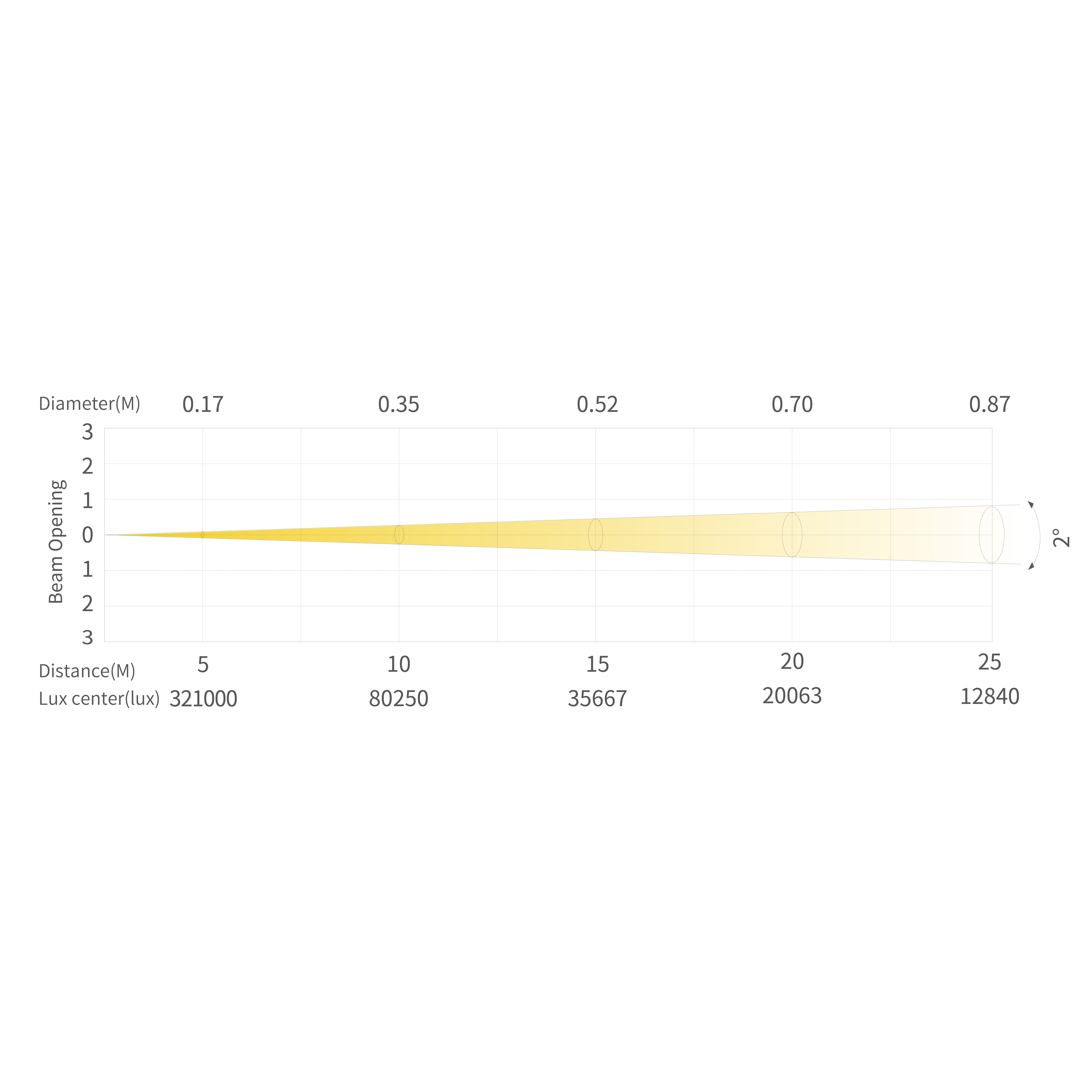

2°(5m @ 321,000lux)
Luminous flux
5500lm
Appearance

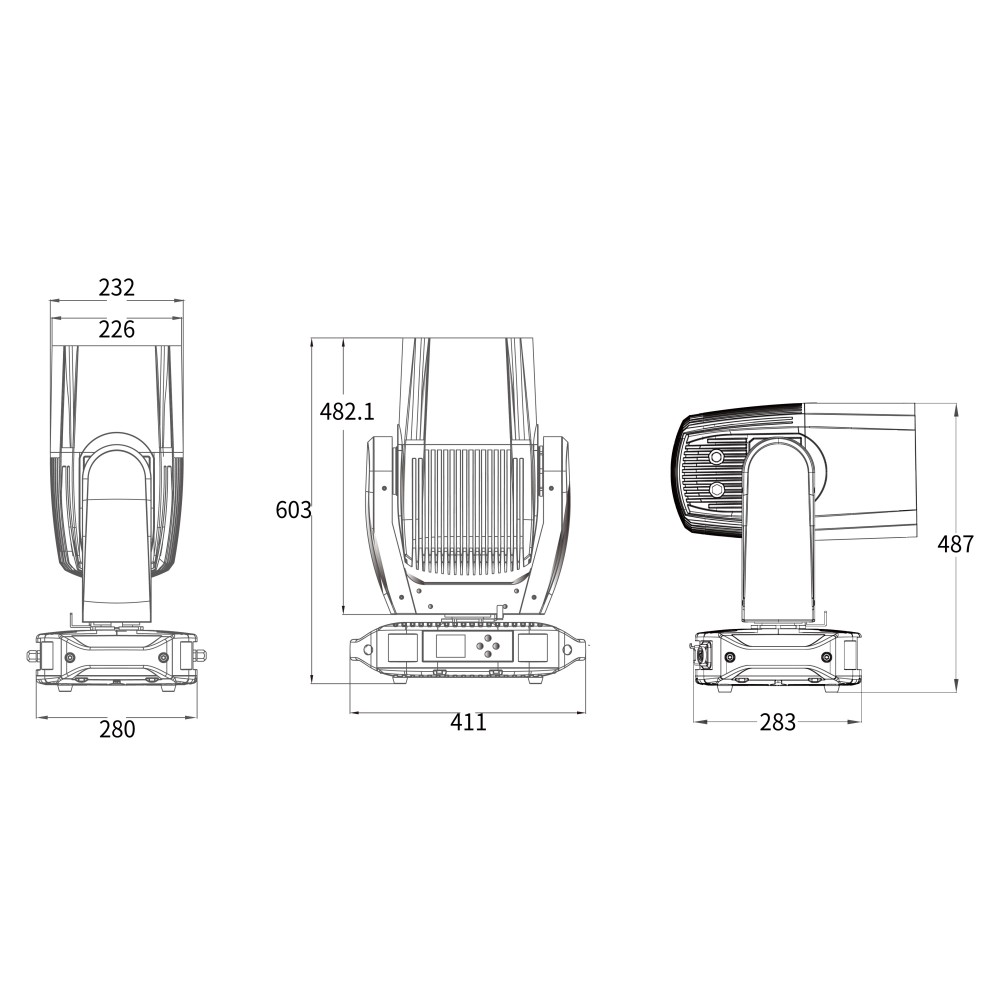

Size
411×280×603mm
Casing
Die casting magnesium
aluminum
weight
30kg
Color
black
Control System
Voltage
100-240VAC，50/60Hz
Power Connection
power in and out
Signal socket
3pin or 5pin in and out
Max Power
500W
Control System
Dimmer
0-100% 16Bit dimming
Cooling
Force convection
Display
Display board control static, 0-25Hz stroboscopic
Control
DMX/RDM/W-DMX(optional)
Con Personality
BASIC（13CH）、STANDARD（18CH）、EXTEND（19CH）
Effect synthetic system
Rotating Gobo
8 rotating Gobo wheel + white, gobo water effect,
gobo shaking effect, Bi-direction rotation
Colors
1 color wheel (9 color+ white, rainbow-flow effect)
focusing
With linear focus function
prism
one 24 prism, one 5-row mirror, positive and negative rotation.
