PLUTO 1800 PROFILE Wash is a high-power professional LED profile wash , with 6.5°-49° Electronic
zoom system. At mini angle 6.5°output up to 63530lux at 5m. Precise X/Y positioning, with 2 color
wheels, professional framing system can cut out any polygon, with frost and iris. It is designed for the
theatres, cultural center, function hall, banquet hall, as well as for rental performance market.
Light source
1600W
luminous flux
23235lm
Angle
Beam Angle：6.5-35°
Field Angle：11-46°
CRI
95Ra，94R9
Weight
45.5KG
Max. Power
1800W
Appearance
Size

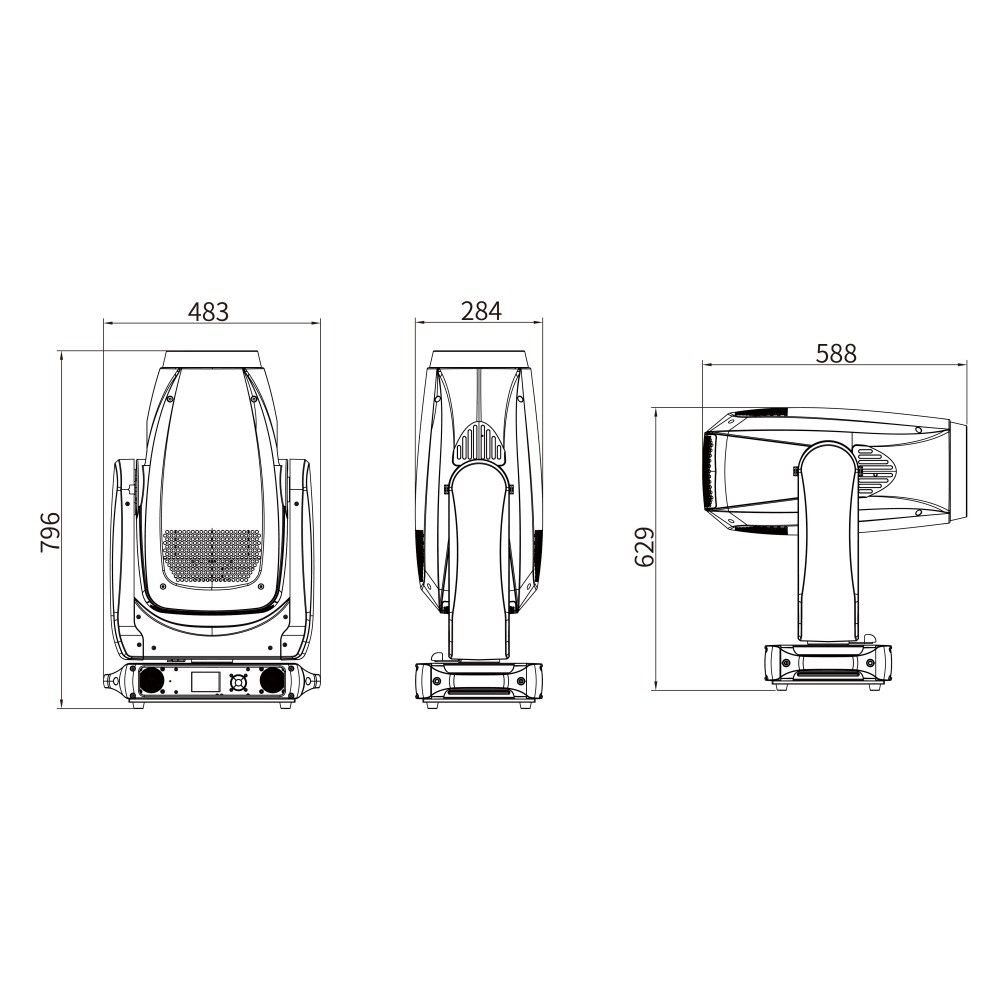

483X284X796mm
Casing
Flame -retardant plastic（V0）
Weight
45.5KG
Color
Black
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Dimmer
0-100%16Bit
Cooling
Forced Convection
Display
On board Control, Custom Mode,0-25Hz Strobe
Control
DMX512，RDM，W-DMX（optional)
Con Personality
BASIC(28CHS)、STANDARD(33CHS)、EXTEND(37CHS)
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges
Effect synthetic system
Colors
Two color wheel (6 dichroic-filters+White,Rainbow-flow effect)
CMYK
CMY wheel, Linear CTO function
Framing system
4 shutter blade; Each blade's angel and direction can be individual
controlled, fully blackout; The whole Framing module is ±90°
Iris
5-100% linearly adjustable with macro
Frost
2 new material frost filters(light & medium), can be
