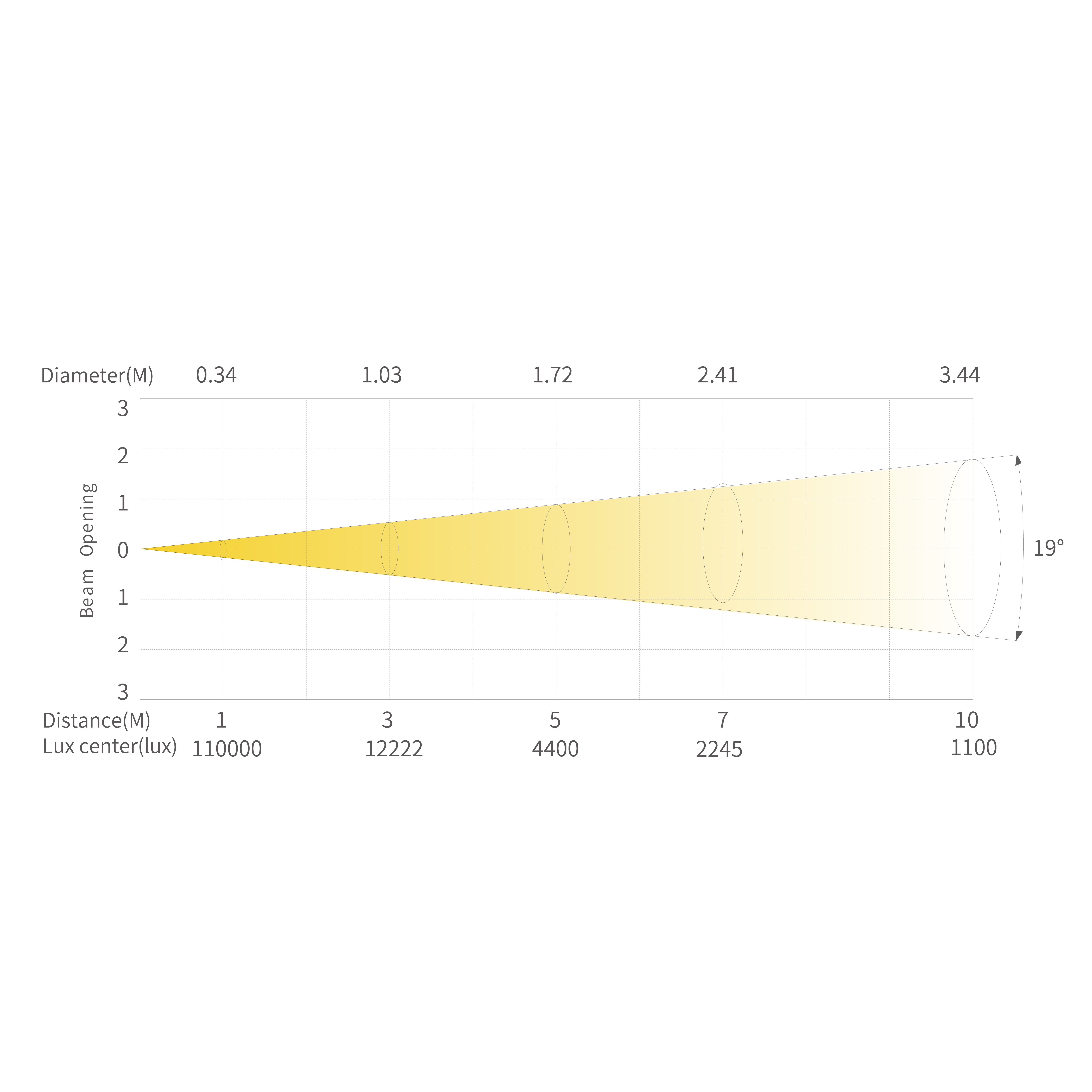

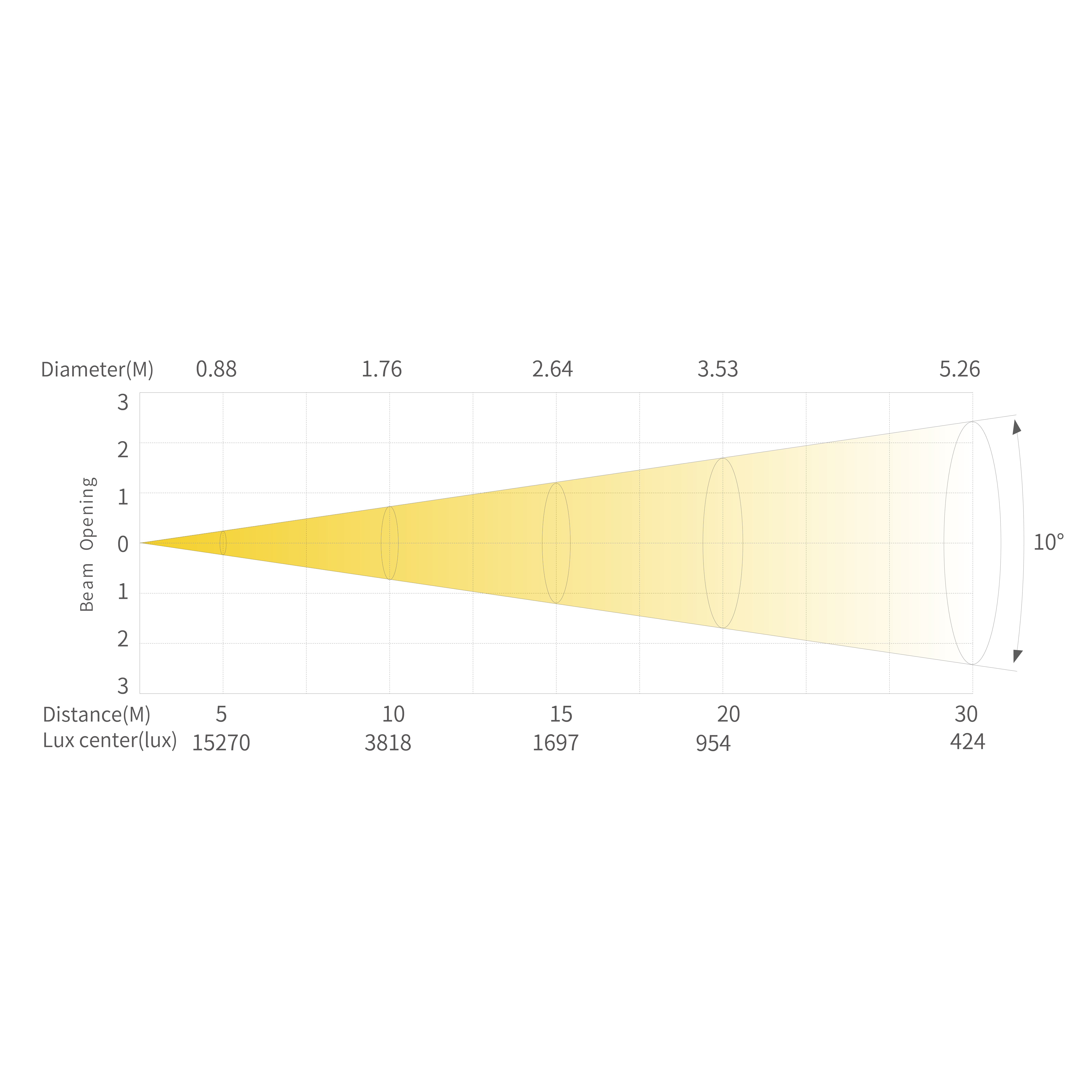

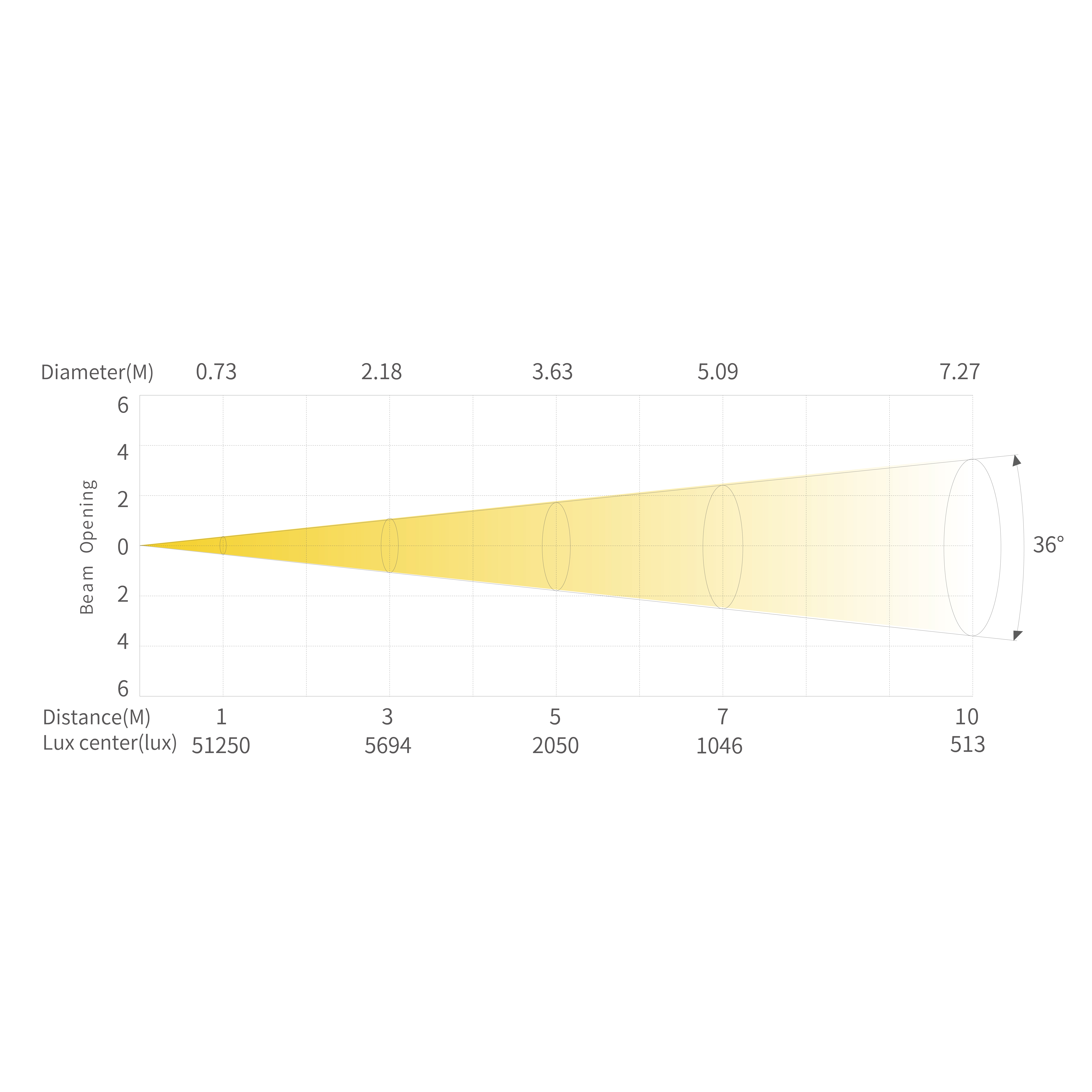

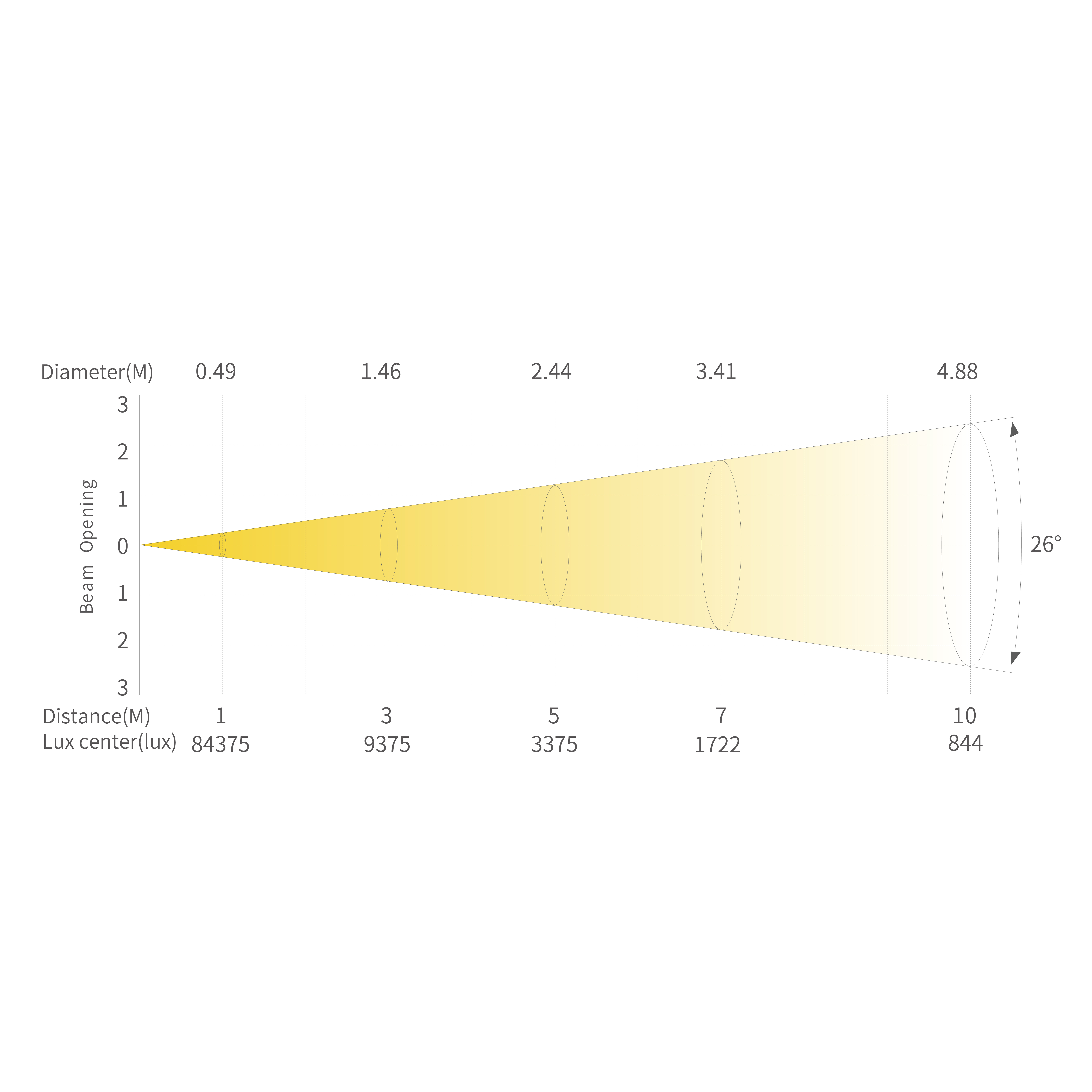

Illuminance Diagram
Hybrid
NH1-X
NEPTUNE NH1-X is a excellent lP66 Hybrid, it adoped high efficiency optical system, 17times optical zoom range (3° to 52°).t has accurate X/Y position, professional CMY color mixing system ,multi-gobo wheels creat colorful and vivid effects, and bring a visual feast to the audience!Both for indoor and outdoor applica- tions, it is the ideal lighting equipment for theater, concerts, theme parks, amusement venues, etc.
/upload/images/product/20250917/17581020862957277.png
Light source
350W LED
/upload/images/product/20250917/17581020861929295.png
Luminous flux
9500lm
/upload/images/product/20250917/17581020861504495.png
Angle
3°-52°
/upload/images/product/20250917/17581020868946553.png
Weight
22kg
/upload/images/product/20250917/17581020867409618.png
Max.Power
550W
Optical system
Light source

350W LED

Angle

3°-52°

Luminous flux

9500lm

llluminance

5m@105,000lx


Appearance
Size

360×219×601mm

casting

Flame-retardant plas

(VO)Die-cast aluminu


Weight

22kg

Color

Black



Electrical Specs
Voltage

100-240VAC,50/60HZ

Max.Power

550W

Power Connection

power in and out

Signal socket

3pin or 5pin in and out

Control System
Pan/Tilt rotation

Infinite Pan270°(8-16bit)

Dimmer

0-100% 24Bit

Cooling

Forced Convection

Display

On Board Control, Custom Mode.0-25Hz Strobe

Control

DMX/RDM//NFC/Bluetooth/DMX(optional)

Con Personality

Basic(22CH)/Standard(26CH)/Extend(29CH)

Effect synthetic system
CMY

CMY

Colors

8 color+white

Rotating Gobo

7 Gobos+ White, Gobo-flow effect, Gobo shake,

Bi-directional rotation


Static Gobo

12 gobos

Frost

Light atomization + rainbow disc

prism

One 8 -facet prism, one 6-linear prism

Scroller

One 6-color scroller, with bi-directional rotation and adjustable speed.



Work Environment
Ambient Temp

-20℃-45℃

IP Rated

IP66

Certification

CE
