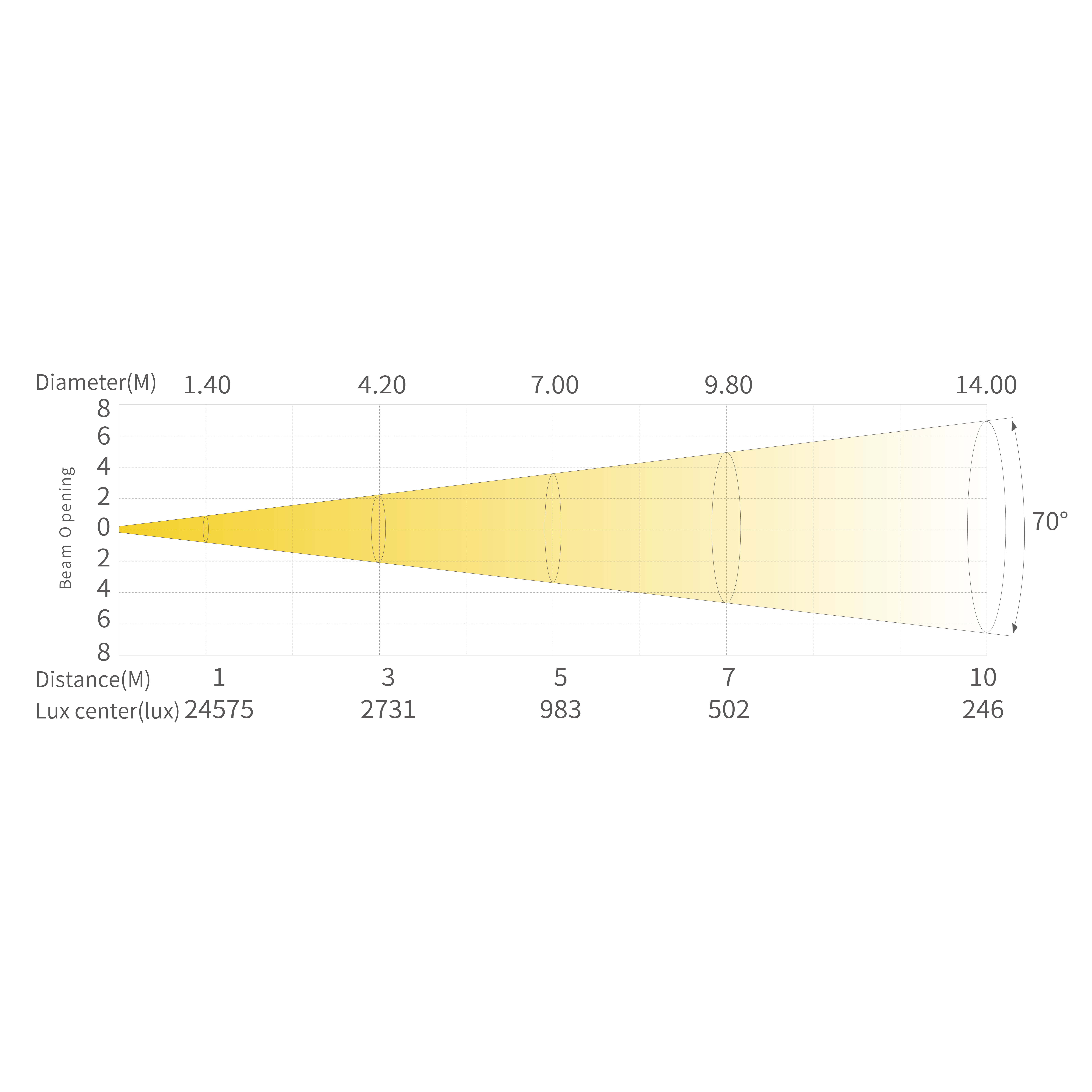

Illuminance Diagram
panel light
TP3
Tourz E-lite adopts 880pcs warm and cold white Leds,uniform color mixing, wide coverage, CCT 2700-6500K linearadjustment, CRl>98, can perfectly present the color temperature of the fixture itself, Ultraquiet waterproof fan isused for efficient heat dissipation, low noise, compact sizeand lightweight to achieve the ultimate. lt is the perfectchoice for exhibition center, conference hall, show and otherperformance places.
/upload/images/product/20250917/17580984563104166.png
Light source
440pcsxWW,440pcsxCW
/upload/images/product/20250917/17580984562152592.png
Luminous flux
44280lm
/upload/images/product/20250917/17580984562295919.png
Weight
11.3kg
/upload/images/product/20250917/17580984569780965.png
Max. Power
500W
Optical system
Light source

440pcsxWW,440pcsxCW

CCT

2700-6500K

Luminous flux44280lm


Appearance
Size

652x120x249mm

Casing

Extruded aluminum

Weight11.3kg
ColorBlack


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max. Power

500W

Power ConnectionPower in and out
DMX XLR3pin 5pin in and out


Control System
DIMMER

0-100%,16Bit

Cooling

Forced Convection

DisplayOn board Control
ProtocolDMX512,RDM
PersonalityUNO(1CHS),VW.D(3CHS),,VW.F(6CHS),,STD.P(9CHSS)


Work Environment
Ambient Temp

-20°-45°

IP RatedIP66
