T10 is a high-power professional LED profile moving ahead with 5° -50° Electronic zoom system. It is a kind of final
version stage light, accurate and efficient motor can provide not only large pan angle and tilt angles but also with
smooth and high speed. PLUTO 800 PROFILE has image-cutting system can cut out any polygon, and with zoom,
focus, prism, color wheel, CMY, gobo wheels, iris, frost can supply high-quality beam colors and gobos. PLUTO
800 PROFILE is equipped with animation wheel which can create dynamic water and dynamic fire effect. PLUTO
800 PROFILE is designed for the cultural center, function hall, banquet hall, and rental performance market.
Light source
1000W
Total lumen output
23540lm
Angle
5 -50°
CRI
Ra:90
Casing
35.5KG
Max. Power
1200W
Optical system
Light source
1000W
Angle
5 -50°
CRI
Ra:90
Total lumen output
23540lm
Illuminance
115040Lx
Appearance

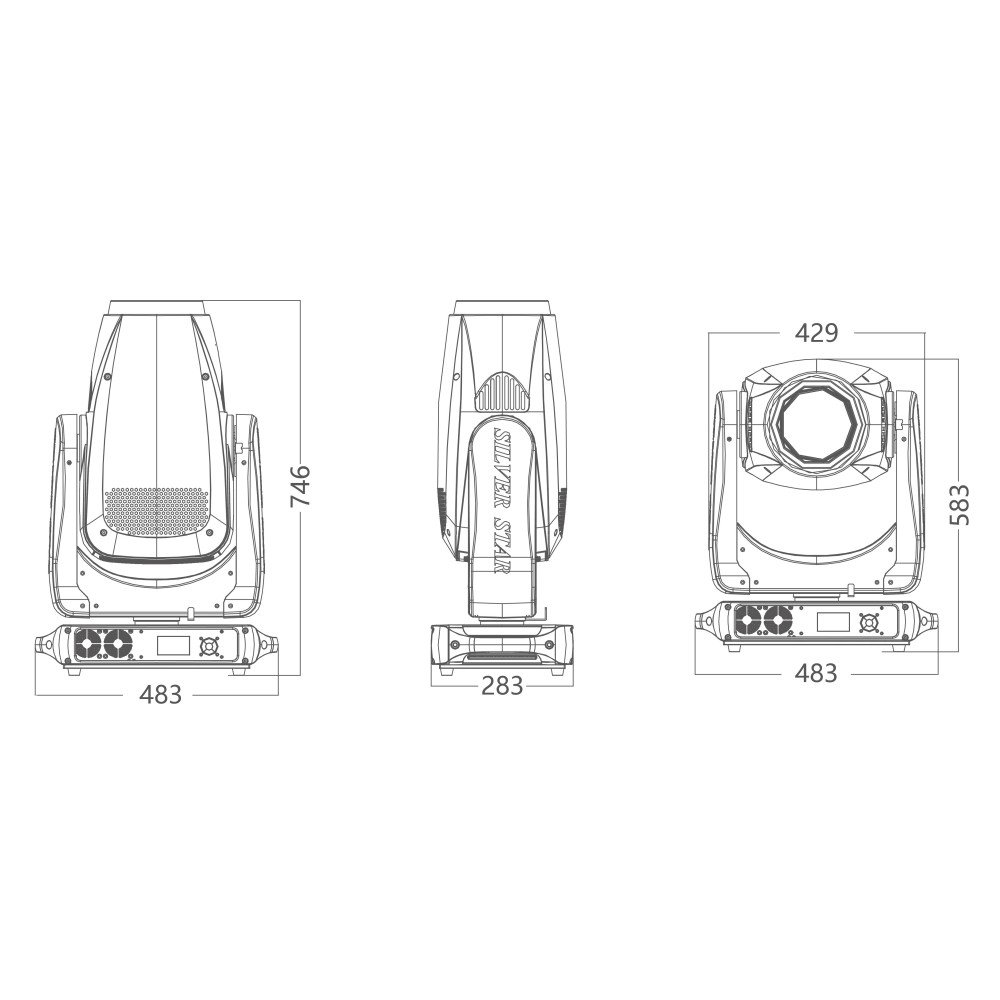

Size
483x283x746mm
Casing
Flame -retardant plastic（V0）
Casing
35.5KG
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
1200W
Power Connection
power in
Signal socket
3pin + 5pin in / out，RJ45 in / out
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Cooling
Forced Convection
Dimmer
0-100%16Bit
Display
On board Contral, Custom Mode,0-25Hz Strobe
Contral
DMX512、RDM、SACN、ARTNET、W-DMX((optianal))
Con Personality
BASIC,STANDARD,EXTEND
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges
